Does a repulsion motor have a commutator?

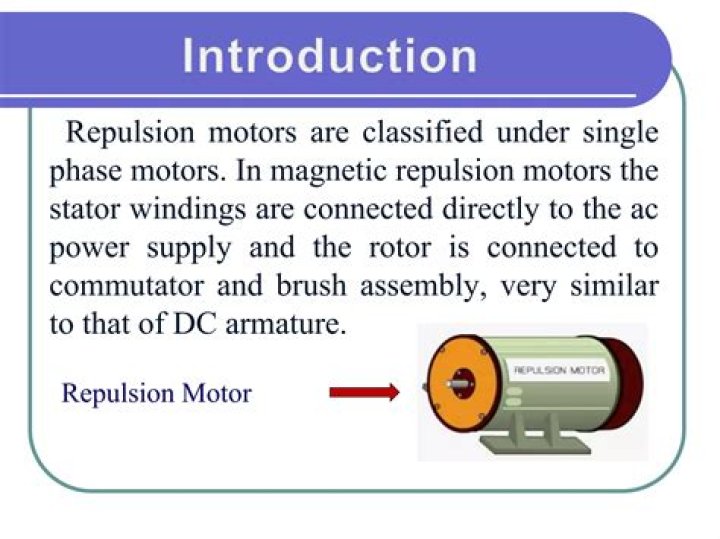

The repulsion motor is equipped with the stator, rotor, and commutator brush assembly. The rotor has distributed DC winding connected to the commutator at one end just like in the DC motor. The carbon brushes are short-circuited on themselves and find a use for conducting current using the armature.
What is repulsion start motor?
“The Repulsion Start Induction motor comprises a wound field or stator of laminated structure and a wound armature or rotor whose coils are connected to a commutator upon which brushes bear and function during the starting period. Consequently this type of motor is regarded as having a high efficiency at start.
What is commutator in motor?
A commutator is a rotary electrical switch in certain types of electric motors and electrical generators that periodically reverses the current direction between the rotor and the external circuit. In a motor the commutator applies electric current to the windings.
Where is repulsion induction motor used?
electric trains
The main application of repulsion motor is electric trains. It starts as a repulsion motor and runs as an induction motor, where the starting torque should be high for repulsion motor and very good running characteristics for induction motor.
What are the shortcomings of a repulsion motor?
Disadvantages of conventional repulsion motor No load speed is very high and dangerous. The power factor is poor at low speeds. Commutator and brushes wear out quickly. This is primarily due to arcing and heat generated at brush assembly.
What are the disadvantages of repulsion motor?
The disadvantages of repulsion motor include the following.
- Sparks will occur at brushes.
- The power factor is very less at less speed.
- The speed at no-load condition is extremely high & unsafe.
- Brushes & commutator exhaust quickly due to heat generation & arcing at the assembly of the brush.
At what speed commutation of a repulsion motor is best?
The commutation of the motor is good at all speeds. No-load speed is above synchronous speed but normal speed is somewhat below synchronous one.
Why commutator is needed?
The commutator assures that the current from the generator always flows in one direction. On DC and most AC motors the purpose of the commutator is to insure that the current flowing through the rotor windings is always in the same direction, and the proper coil on the rotor is energized in respect to the field coils.
What is the function of commutator?
The function of commutator ring in an electric motor is to reverse the direction of current flowing through the coil every time coil just passes the vertical position during a revolution. Hence as the direction of the current is reversed, the torque is changed in the direction.
Which of the following is an advantage of a repulsion motor?
The advantage of repulsion motors is that the rotational speed can be varied within wide limits without the use of auxiliary apparatus. The motors have the disadvantage of being complicated in structure. Repulsion motors are used in low-power variable-speed single-phase AC drives.
How many types of repulsion motors are there?
Types of Repulsion Motor There are three kinds of motors available in the market which works under the principle of repulsion like the following.
What are the demerits of repulsion motor?
Disadvantages of Repulsion Motor :
- Maintenance required for commutator is more.
- Chances of sparking at the brushes.
- Replusion motors are more expensive.
- It is not a constant speed motor and speed decreases with an increase in load.
- The operation of repulsion is noisy.
