How do I use VGA FPGA interface?

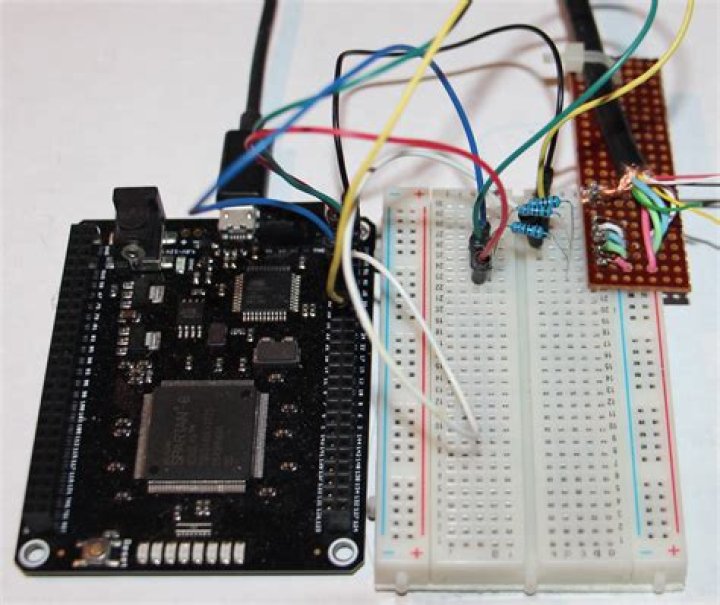

VGA interface with FPGA is performed by placing 270 OHM Resister value serial to FPGA pin R, G, B. The Remaining 2 pins, Horizontal Sync and Vertical Sync taking care of timing of scan rate. Horizontal Sync performs controlling operation for start and end of line pixel is displaying on the visible area of the monitor.
What is the frequency of VGA?
VGA Signal 640 x 480 @ 60 Hz Industry standard timing.
What is VGA protocol?
VGA is a standard interface for controlling analog monitors. The computing side of the interface provides the monitor with horizontal and vertical sync signals, color magnitudes, and ground references.
What is VGA controller?
VGA Controller is the digital circuit designed to drive VGA displays. It reads from Frame Buffer (VGA Memory) which represents the frame to be displayed, and generates necessary data and sync signals for display purpose.
What is the max resolution for VGA?
640 x 480
In addition, VGA provides a maximum resolution of 640 x 480 with a refresh rate of 60 Hz while a DVI connector can boast a resolution of up to 1920 x 1200 pixels for single-link format or 2560 x 1600 resolution for dual-link format [6].
Can VGA do 1080p?
VGA can indeed support 1080p. The quality of the signal begins to drop off above 1920×1080 (1080p) which will cause a drop in image quality due to the analogue nature of the signal but with a good enough cable and transceiver on either end it can be used for resolutions up to and including 2048×1536.
How does VGA video work?
A VGA Monitor can be thought of as a grid of pixels where each pixel is a picture elements that can be set to a specific color. The VGA interface works serially, that is, color information for each respective pixels is sent one after the other, as opposed to all at once.
Why FPGA is faster than CPU?
So, Why can an FPGA be faster than an CPU? In essence it’s because the FPGA uses far fewer abstractions than a CPU, which means the designer works closer to the silicon. He doesn’t pay the costs of all the many abstraction layers which are required for CPUs.
