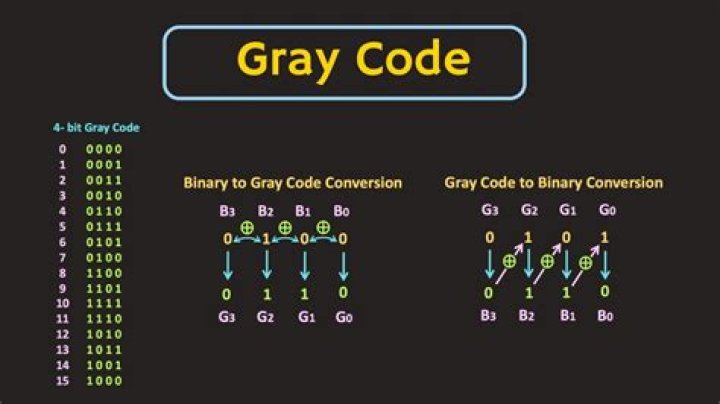

How do you convert a gray number to binary?
b1=g1⊕g2⊕g3… ⊕gn and b0=g0⊕g1⊕g2⊕g3… ⊕gn. Example − Convert Gray code 100111 into Binary number….Conversion of Gray to Binary Code.
| Gray Code g2g1g0 | Binary b2b1b0 |
|---|---|
| 011 | 010 |
| 010 | 011 |
| 110 | 100 |
| 111 | 101 |
What is the equivalent Gray code for binary code 0011?
Binary to Gray code conversion
| Decimal Number | 4-bit Binary Code | 4-bit Gray Code |
|---|---|---|
| 1 | 0001 | 0001 |
| 2 | 0010 | 0011 |
| 3 | 0011 | 0010 |
| 4 | 0100 | 0110 |
How do you convert gray code to decimal?
Conversion from Gray Code to Decimal
- Step 1: Take the first bit of the gray code input and write it to the output. Output is 1.
- Step 2: Repeat the steps below until you reach the end of the input. Output: 10.
- Step 3: So, our binary result is: 10101101.
- Step 4: Convert the binary output to decimal. So, 10101101 becomes 173.
Is Gray code suitable for binary addition?
That is to say that two adjacent code numbers differ from each other by only one bit. Gray code is the most popular of the unit distance codes, but it is not suitable for arithmetic operations.
Where is GREY code used?
Gray codes are widely used to prevent spurious output from electromechanical switches and to facilitate error correction in digital communications such as digital terrestrial television and some cable TV systems.
What is the binary number for Gray code 110 100?
Conversion of Binary to Gray Code
| Decimal | Binary | Gray Code |
|---|---|---|
| 2 | 010 | 011 |
| 3 | 011 | 010 |
| 4 | 100 | 110 |
| 5 | 101 | 111 |
How do you solve gray code?
The most significant bit (MSB) of the Gray code is always equal to the MSB of the given Binary code. Other bits of the output Gray code can be obtained by XORing binary code bit at the index and previous index….Conversion of Binary to Gray Code.
| Decimal | Binary | Gray Code |
|---|---|---|
| 0 | 000 | 000 |
| 1 | 001 | 001 |
| 2 | 010 | 011 |
| 3 | 011 | 010 |
How do I use gray code?
Gray code is not weighted that means it does not depends on positional value of digit. This cyclic variable code that means every transition from one value to the next value involves only one bit change….Constructing an n-bit Gray code.
| Decimal | Binary | Gray Code |
|---|---|---|
| 2 | 010 | 011 |
| 3 | 011 | 010 |
| 4 | 100 | 110 |
| 5 | 101 | 111 |
What is the Gray code for decimal 7?
Motivation and name
| Decimal | Binary | Gray |
|---|---|---|
| 7 | 0111 | 0100 |
| 8 | 1000 | 1100 |
| 9 | 1001 | 1101 |
| 10 | 1010 | 1111 |
Why do we use gray codes?
Why do we use gray codes? Explanation: Today, Gray codes are widely used to facilitate error correction in digital communications such as digital terrestrial television and some cable TV systems. Explanation: The reflected binary code is also known as gray code because one digit reflected to the next bit.
What is gray code example?
Gray Code system is a binary number system in which every successive pair of numbers differs in only one bit. For example, the states of a system may change from 3(011) to 4(100) as- 011 — 001 — 101 — 100.
Where do I find the gray code?
How to convert a binary number to a Gray code?
Now add prefix 0 for original previous code and prefix 1 for new generated code: 00, 01, 11, and 10. Therefore, Gray code 0 and 1 are for Binary number 0 and 1 respectively. Gray codes: 00. 01, 11, and 10 are for Binary numbers: 00, 01, 10, and 11 respectively.
What’s the Gray code for 0 and 1?
Therefore, Gray code 0 and 1 are for Binary number 0 and 1 respectively. Gray codes: 00. 01, 11, and 10 are for Binary numbers: 00, 01, 10, and 11 respectively. Similarly you can construct Gray code for 3 bit binary numbers: 3. Using Exclusive-Or (⊕) operation:
How did the Gray code get its name?
Gray Code. Gray code, named after Frank Gray, is a binary numeral system where two successive values differ in only one bit. It is also known as the reflected binary code.
Which is VHDL code for Gray code to binary conversion?
VHDL Code for Gray code to Binary Conversion is given below. –xor gates. Assume the binary digits in 3-bit binary number like b0 , b1 , b2, wherever the ‘b2’ bit is the MSB (most significant bit) & the ‘b0’ bit is the LSB (least significant bit) of Binary.
What are the advantages of Gray code over binary code?
Advantage of grey code over binary is only one-bit changes for each step. This will be useful in circuits that are sensitive to glitches. Example: When you use grey code to trim the output impedance of IO blocks, their won’t be a huge jump in codes momentarily that would cause reflection.
What is the difference between Gray code and binary code?
Binary code is used in truth tables whereas Gray code is used in Karnaugh’s Maps or K-Maps. In Gray code, the difference between any two numbers it’s derived from their binary counterparts. Here, each adjacent Gray number’s binary code differs by only 1-bit.
Is Gray code a BCD code?
• The Gray code is NOT a BCD code . The Gray code is used in applications where the normal sequence of binary numbers may produce an error or ambiguity during the transition from one number to the next.
