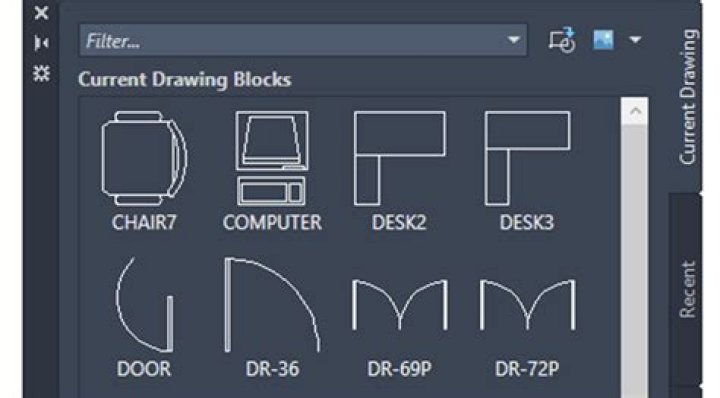

How do you create a block in AutoCAD 2013?
A Quick Way to Create a Block in AutoCAD Then, select the objects from which you want to make a block and press ENTER.
Can Windows 10 install AutoCAD 2013?
AutoCAD 2013 is not supported on Windows 10. Please upgrade AutoCAD to latest version or choose a supported OS to install.
What is the activation code for AutoCAD 2013?
For example, installing AutoCAD 2013 as a point product requires product key 001E1, but installing AutoCAD 2013 from the Autodesk Product Design Suite Ultimate 2013 requires product key 781E1.
How do I edit a PDF in AutoCAD 2013?
Editing PDF and Other Drawing File Formats in AutoCAD
- Open a new or existing drawing file.
- On the Application menu, choose Import → PDF.
- Press Enter.
- Browse to and select the desired PDF file using the file dialog box that has appeared.
- Click Open. The Import PDF dialog box appears.
- Click OK.
How do I convert 2D CAD to 3D?
Click the “cube” icon at the top right of the canvas and then drag the mouse until the top, right and front sides of the cube are visible. This changes the viewpoint from 2-D to 3-D, allowing you to see the three-dimensionality of the 3-D form that you’ll create from the 2-D model.
How do I make an object unique in AutoCAD?
The trick is to use the FLATTEN command. If we select “Sample Block 01” and run the FLATTEN command, the result will be a flattened version of the same block called “Sample Block 01-flat1”. Because the new block has a different name we can modify it without affecting the other instances of that block.
What is hatching in AutoCAD?
The Hatch command in AutoCAD is used to fill patterns inside an enclosed area. The patterns are hatched, gradient, and solid fill. The gradient patterns are defined as a smooth transition between two colors. The Hatch Pattern Scale signifies the spacing between the lines in a particular pattern. …
