How do you specify a shoulder screw?
To specify inch shoulder screws: Example: 5/8″ x 2″ = a shoulder screw with a 5/8″ diameter shoulder, 2″ long. Thread size is one standard size smaller than the shoulder diameter and needn’t be specified, except for: A screw with a 1/2″ diameter shoulder has a 3/8 – 16 thread.
Do cap screws have shoulders?
Shoulder Socket Cap Screws are high strength fasteners with an Internal Hex or Allen drive style head. The shoulder is a cylindrical unthreaded area before the thread, allowing for rotation of parts and are used in moving parts and other mechanical applications.
What is the main advantage of a shoulder screw?
The shoulders give the screws their versatility by acting as shafts or dowels for rotating items such as bearings and bushings, axles for rolling parts, guides for sliding elements, and pivot points or mounting pins. Shoulder screws are often used in punch-and-die mechanisms or plastic-injection-mold sets.
What is the shoulder of a screw?

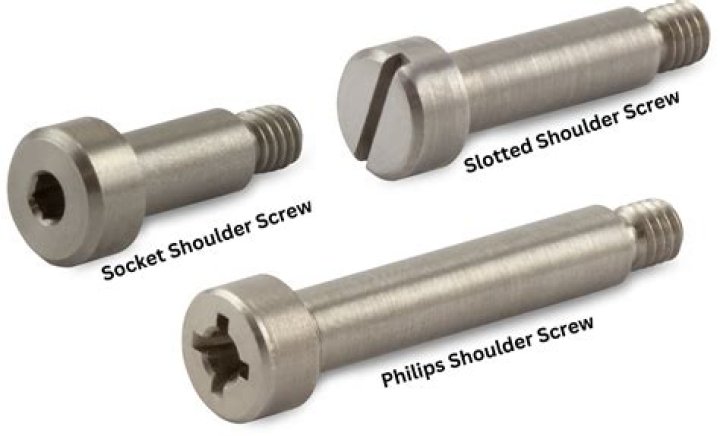

A shoulder screw is a mechanical fastener that screws into one part and provides a freely rotating pin joint connection to another part. A shoulder screw, also called a shoulder bolt, has a shank with a larger diameter immediately below the head that “steps down” to a smaller diameter for the threaded length.
Do shoulder screws need washers?
They do not generally have a pointed tip, which means that predrilling is necessary. Mated nuts will also need to be used and often washers are a good idea as well, depending on how much pressure the fasteners will be under. Sometimes called shoulder bolts, these fasteners are also available in square shapes.
What types of screws are there?
Screw Types
- Wood Screws. Wood screws are used for basic wood construction and woodwork projects to attach wood to wood.
- Deck Screws. Deck screws are similar to wood screws with a few extra specificities.
- Drywall Screws.
- Masonry Screws.
- Sheet Metal Screws.
- Lag Bolts.
- Hex Bolts.
Do you use a washer with a shoulder bolt?
Starts here5:33Understanding Shoulder Bolts & Cool Creations Winner | Fasteners 101YouTube
Are screws used in rotator cuff surgery?
The technical aspects of rotator cuff repair involve placing small screws in the upper portion of the arm bone (humerus) where the rotator cuff tendon normally attaches. The screws are called suture anchors and are made from a special form of biodegradable plastic that the body will naturally absorb over time.
What grade is a shoulder bolt?
Shoulder bolts are available in both standard and precision grades. The diameter of the shoulder of a standard shoulder bolt is typically 0.002 to 0.004 in. smaller than its nominal value. Precision-grade shoulder bolts are only 0.001 or 0.002 in.
Why use a washer with a nut and bolt?
The primary purpose of most washers is to evenly distribute the load of the threaded fastener with which they are used. Threaded fasteners stress the material in which they are driven. Washers reduce the risk of such damage by evenly distributing the fastener’s load across the surface of the material.
