How do you test a LDR?
Connect the two ends of an LDR to a multimeter (with multimeter setting in resistance mode).
- Now expose the LDR to sunlight. If the value of resistance is in the lower range (say 500 Ohms), then half of the testing is done.
- Cover the LDR with an opaque paper/ cloth and then see the resistance reading on the multimeter.
How does a light dependent resistor work LDR?
Working Principle of LDR. These devices depend on the light, when light falls on the LDR then the resistance decreases, and increases in the dark. When a LDR is kept in the dark place, its resistance is high and, when the LDR is kept in the light its resistance will decrease.
What is the resistance of light dependent resistor LDR?
Light dependent resistor specifications
| Example Photoresistor Specifications | |
|---|---|
| Parameter | Example Figures |
| Max. resistance @ 10lux | 4.5kΩ |
| Typ. resistance @ 100lux | 0.7kΩ |
| Dark resistance after 1 sec | 0.03MΩ |
What is the value of resistance of LDR at strong light condition?
Normally the resistance of an LDR is very high, sometimes as high as 1000 000 ohms, but when they are illuminated with light resistance drops dramatically. When a light level of 10 lux (very low light level) is directed towards it, the resistance has risen dramatically to 10.43M (10430000 ohms).
What is the output of LDR Sensor?
The LDR gives out an analog voltage when connected to VCC (5V), which varies in magnitude in direct proportion to the input light intensity on it. That is, the greater the intensity of light, the greater the corresponding voltage from the LDR will be.
What are LDRs made of?
Modern light dependent resistors are made of lead sulfide, lead selenide, indium antimonide, and most commonly cadmium sulfide and cadmium selenide. The popular cadmium sulfide types are often indicated as CdS photoresistors.
Where are photoresistors used?
Photoresistors are used in streetlights to control when the light should turn on and when the light should turn off. When the surrounding light falls on the photo resistor, it causes the streetlight to turnoff. When there is no light, the photoresistor causes the street light to turn on.
Do voltmeters have high internal resistance?
A voltmeter measures the difference in voltage between the two different points (say, on opposite sides of a resistor), but it does not adjust the amount of current passing between these two points through the device. It will therefore have very high resistance, so that it does not draw current through it.
Do LDR’s respond to all wavelength of light?
Do LDR’s respond to all wavelengths of light? Explanation: LDR’s are non linear devices. Their sensitivity varies with the wavelength of light that’s incident on them.
What is the typical resistance of an LDR in bright sunlight?
> The resistance of a light-dependent resistor decreases as the light level increases. > Its resistance is about 100 Ω in bright sunlight but it can be over 10 MΩ in the dark.
Why does the resistance of an LDR decrease as light intensity increases?
The light energy produces more free electrons which increases the current for a certain voltage across the LDR which means a drop in resistance. The increasing temperature produces more free electrons and so the resistance falls.

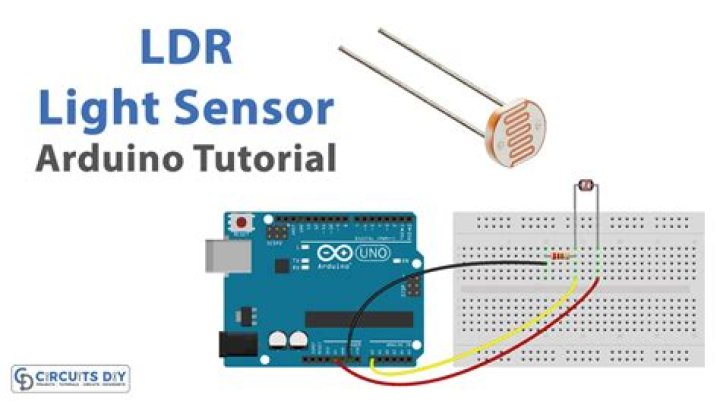

How do you calibrate a LDR sensor?
Programming and Operating the Circuit Press the Arduino reset button and then move your hand above the LDR so that a minimum value is sampled and saved. Move your hand away from the LDR so that it receives more light and a maximum value is sampled and saved. After calibration, the LED will switch on.
