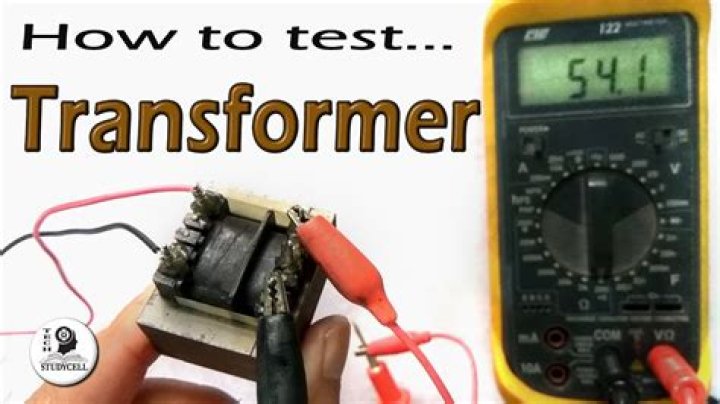

How do you test a transformer output?
In output transformer testing, you use the voltmeter setting to check the output voltage while the transformer is connected to power. In a transformer continuity test, you disconnect the transformer from power and check resistance in both the input and output coils using the ohmmeter function.
How do you test a guitar amp power transformer?
Measure the resistance to the chassis from both ends of the primary winding. It should be more than 1M ohm. If it is shorted or less than 100K ohms, the transformer is bad. If it is between 100K and 1M ohm, unsolder the primary leads from the terminals they contact and measure again.
How do you test an audio transformer?
If you can identify the primary and secondary terminals of the transformer, test with an ohmmeter to find the resistance of each coil section. Each coil section should be somewhere between a few tens of ohms up to a few thousand at most.
How do you test a transformer for shorts?
A suspected short can be checked with an ohmmeter across the secondary winding with the source and load disconnected. If there is a short, the meter will read 0 Ω. Again the meter should be on a low scale.
What is an output transformer?
The output transformer converts that to a low-voltage, highcurrent signal that will drive the speaker. The high DC voltage on the tube side of the output transformer will not pass to the speaker side—the output transformer blocks DC. But it will transfer the AC guitar signal to the speaker side.
How do I know if my amp transformer is bad?
If the bulb glows bright then the power cord or transformer winding is shorting out internally. Drain the caps and disconnect all three power cord wires, wrap each one in electrical tape and plug in the amp. If the bulb doesn’t light then the transformer is shorted internally and must be replaced.
How do you test a guitar amp with a multimeter?
Insert the Test CD into the source unit. With the A.C. Voltmeter set to ~ AC VOLTS, in a range of 10 to 100 Volts, connect the voltmeter (+) test lead to a single channel of the amplifier (+) output. Connect the voltmeter (-) test lead to the same amplifier channel’s (-) terminal.
