How do you use a magnetic compass?
Pick up the compass and hold it flat in front of you. Be sure that the direction of travel arrow points straight ahead. Then, rotate yourself, keeping an eye on the magnetic needle. When the red end lines up exactly with the orienting arrow, stop.
How do you read a compass?
Taking a Compass Bearing Now, point the fixed direction-of-travel arrow at an object or landmark. Then, twist the compass housing so the compass needle lies right over the orienting arrow. Make sure that the compass needle is pointing North at the top of the housing. Finally, read the number on the rim of the compass.
What is the purpose of a magnetic compass?
A magnetic compass, which is used to assist in navigation, is an instrument that shows magnetic north. You must apply a correction to determine the direction of true north.
What is a magnetic compass and how does it work?
Magnetic compasses consist of a magnetized needle that is allowed to rotate so it lines up with the Earth’s magnetic field. The ends point to what are known as magnetic north and magnetic south. Scientists and historians don’t know when the principles behind magnetic compasses were discovered.

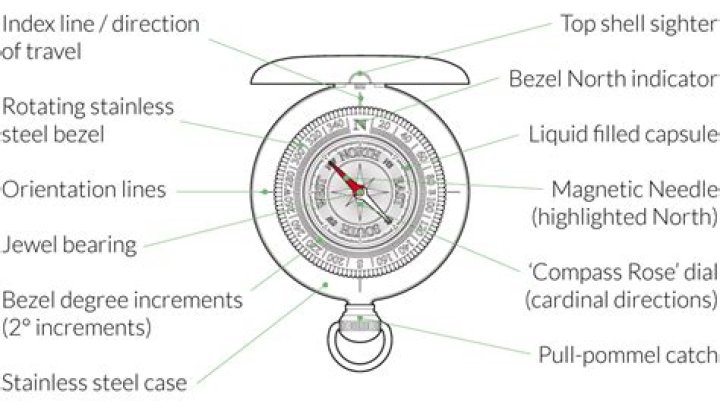

What are the markings on a compass?
Most compasses are marked with the four cardinal points —north, east, south, and west—but some are marked additionally with the number of degrees in a circle (360 north is 0 or 360, east is 90, south is 180, and west is 270). Both kinds are easy to use with a little practice.
How do you read a compass on your phone?
If you want to find north, hold your phone level in your hand and slowly turn yourself until your white compass needle matches up with N and its red arrow. You can do the same with all the major directions by turning with your phone in your hand until the compass needle aligns with your intended direction.
Does a compass always point north?
A magnetic compass does not point to the geographic north pole. Magnetic field lines outside of a permanent magnet always run from the north magnetic pole to the south magnetic pole. Therefore, the magnetic field lines of the earth run from the southern geographic hemisphere towards the northern geographic hemisphere.
What is the importance of compass?
The magnetic compass was an important advance in navigation because it allowed mariners to determine their direction even if clouds obscured their usual astronomical cues such as the North Star. It uses a magnetic needle that can turn freely so that it always points to the north pole of the Earth’s magnetic field.
What happens if you put a compass next to a magnet?
The needle of a compass is itself a magnet, and thus the north pole of the magnet always points north, except when it is near a strong magnet. When you take the compass away from the bar magnet, it again points north. So, we can conclude that the north end of a compass is attracted to the south end of a magnet.
How do you line up a magnetic compass?
Line up with the true north arrow indicator on the map by placing the heading arrow on the compass in sequence with the true north line. Rotate the compass housing dial until it is lined up with the magnetic north indicator on the map.
How do you find the direction of travel on a compass?
Twist the degree dial until the orienting arrow lines up with the north end of the magnetic needle. Once they’re aligned, this will tell you where your direction of travel arrow is pointing. Take off local magnetic variation by twisting the degree dial the correct number of degrees to the left or right, depending on the declination.
What’s the best way to calibrate a compass?
Rotate the compass housing dial until it is lined up with the magnetic north indicator on the map. 4. Keep the compass in place and then rotate the map until the compass needle is pointing north in sequence with the magnetic north line. The compass and map will now be calibrated and aligned with a true north direction.
Where to find magnetic variation on a compass?
This information is usually found on the compass rose on your chart. Variation is the difference in degrees and minutes between True North on the chart you are looking at and Magnetic North at that place at a given time.
How do you read the direction of travel on a compass?
Orient the compass, by turning the dial until the orienting arrow aligns with the compass needle. Once aligned, you can read the bearing degrees aligned with the direction of travel, which in this case is 300 degrees.
What is the magnetic declination of the compass?
The Green line bisecting North America is the 0 degrees line of magnetic declination, i.e. at any location on this line, there is no difference in bearing between true north and magnetic north. The red lines are positive declinations (where your compass needle would be pointing at magnetic north, east of true north).
What happens to the needle on a magnetic compass?
A magnetic compass will align its needle with the local magnetic field, which in most cases, is not the same as true north. One of the most important skills when using a magnetic compass is the ability to correct for this difference, known as declination. The amount of declination varies by your location.
How do you read the bearing on a compass?
Keeping the compass flush with the ground and pointed towards the landmark, turn the rotating bezel of the compass until the North magnetic needle lines up with 0° on the compass (or “red is in the shed”). You’ve just captured the landmark’s bearing, which you can read at the top of the rotating housing, right under the index line.
