How do you use Altera in ModelSim?
Go to Assignments -> Settings and select Modelsim-Altera in the Tool name field. Do not check the “Run gate-level simulation automatically after compilation” box. Compile the project (click the purple triangle). If you get errors, read through them to try to figure out the problem.

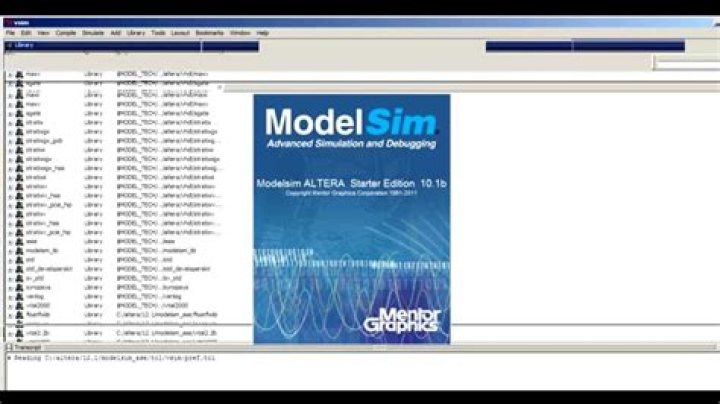

What is ModelSim-Altera?
ModelSim is a multi-language environment by Mentor Graphics, for simulation of hardware description languages such as VHDL, Verilog and SystemC, and includes a built-in C debugger. ModelSim can be used independently, or in conjunction with Intel Quartus Prime, PSIM, Xilinx ISE or Xilinx Vivado.
How do I connect Quartus to ModelSim?
In the Intel® Quartus® Prime software, click Tools > Options > EDA Tool Options. To specify the location of your simulator for integration with the Intel® Quartus® Prime software, click Tools > Options > EDA Tool Options. In ModelSim-Altera, enter the ModelSim* – Intel® FPGA Edition executable path.
How do you make a Quartb testbench?
You can get Quartus to produce a shell testbench file by selecting Processing | Start | Start Test Bench Template Writer. There will now be a file in your simulation\modelsim directory. Open it. The section near the bottom of the file is where you put statements for your simulation.
Is Quartus free?
The Intel® Quartus® Prime Lite Edition software provides an ideal entry point to high-volume device families and is available as a free download with no license file required.
Is ModelSim part of Quartus?
Intel licenses Mentor Graphics ModelSim*-Intel® FPGA simulation software to customers with Intel® Quartus® Prime Design Software.
Is ModelSim student edition free?
ModelSim PE Student Edition is a free download of the industry leading ModelSim HDL simulator for use by students in their academic coursework. – Support for both VHDL and Verilog designs (non-mixed).
How do I run testbench on modelsim?
Go to Simulate, click Start Simulation. At the Design tab, search for work, then expand the work and select your testbench file. At the Libraries tab, click Add. Select library lpm, then click OK.
What is a FPGA board?
FPGA stands for field-programmable gate array. That’s quite a mouthful, so let’s start with a basic definition. Essentially, an FPGA is a hardware circuit that a user can program to carry out one or more logical operations. Those circuits, or arrays, are groups of programmable logic gates, memory, or other elements.
