How does the ignition system operate?
ignition system, in a gasoline engine, means employed for producing an electric spark to ignite the fuel–air mixture; the burning of this mixture in the cylinders produces the motive force.
What are the main parts of car ignition system?
The following are common ignition system components:
- Battery.
- Distributor Cap and Rotor.
- Ignition Coil/ Coil Packs/Coil- On-Plug (COP)
- Spark Plug Wires.
- Spark Plugs.
- Ignition Module.
- Powertrain Control Module (PCM)
- Crankshaft and Camshaft Sensors.
What are the four different types of ignition system?

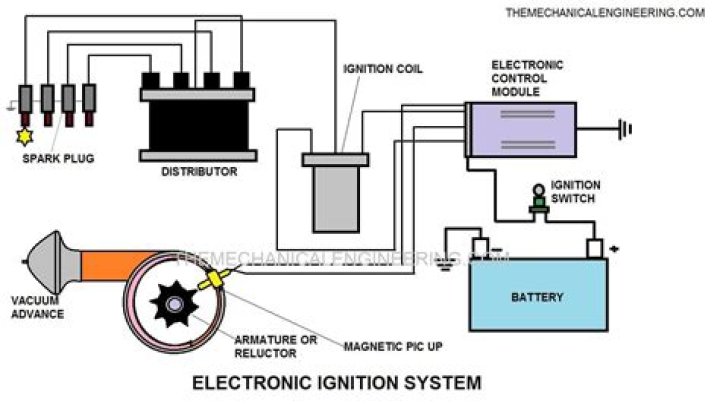

Currently, we recognize four types of ignition systems used in most cars and trucks: conventional breaker-point ignitions, high energy (electronic) ignitions, distributor-less (waste spark) ignition and coil-on-plug ignitions.
What are the 5 ignition systems?
Ignition 101: A Quick Guide to 5 Common Ignition System Designs
- Breaker-Point Ignition System.
- High Energy (Electronic) Ignition System.
- Distributorless Ignition System.
- Coil-on-Plug (Direct) Ignition.
- Capacitor Discharge Ignition (CDI) System For Small Engines.
What are the 2 types of ignition?
The first two types of ignition system, breaker-point system and electronic system, are both distributor-based, in contrast with the other two distributor-less systems. Thus, let’s learn the basics of how a distributor-based system works. A distributor is an enclosed rotating shaft that has mechanically timed ignition.
What is the importance of ignition system?
The purpose of the ignition system is to create an electric spark in the engine combustion chamber, at exactly the right time, which will ignite the mixture of petrol and air.
How do you know if your ignition is bad?
Look out for these common signs of ignition trouble.
- Key won’t turn. If the key won’t turn be sure that the ignition lock is not engaged by turning the steering wheel back-and-forth until it locks.
- Stalling engine.
- Flickering dash lights.
- No sound from starter motor.
- Car does not start.
What will happen if there is spark in the ignition system?
Ignition by electrical spark occurs because the fuel particles between the electrodes are activated by the spark to discharge, a chemical reaction (oxidation) is triggered, the heat of reaction is generated, and the flame core is formed.
What is an ignition module?
An ignition control module is a component that can regulate spark generation in many internal combustion engines. The main purpose of the ignition module is typically to open or close a ground circuit to the primary winding inside the ignition coil.
What are the two types of ignition?
Although there are many different types of ignition systems on the market today, most can be placed in one of the three groups:
- Conventional breaker-point ignition (in use since the early 1900s)
- Electronic ignition (popular since the early 1970s)
- Distributorless ignition (introduced in the mid-1980s)
Which ignition system is a mechanical?
Mechanical ignition. Most four-stroke engines have used a mechanically timed electrical ignition system. The heart of the system is the distributor which contains a rotating cam running off the engine’s drive, a set of breaker points, a condenser, a rotor and a distributor cap.
