How many opcodes are there in 8086?
The Opcode stands for Operation Code. Every Instruction has a unique 6-bit opcode. For example, the opcode for MOV is 100010….Instruction Format in 8086 Microprocessor.
| REG Code | Register Selected |
|---|---|
| 1 0 1 | CH BP |
| 1 1 0 | DH SI |
| 1 1 1 | BH DI |

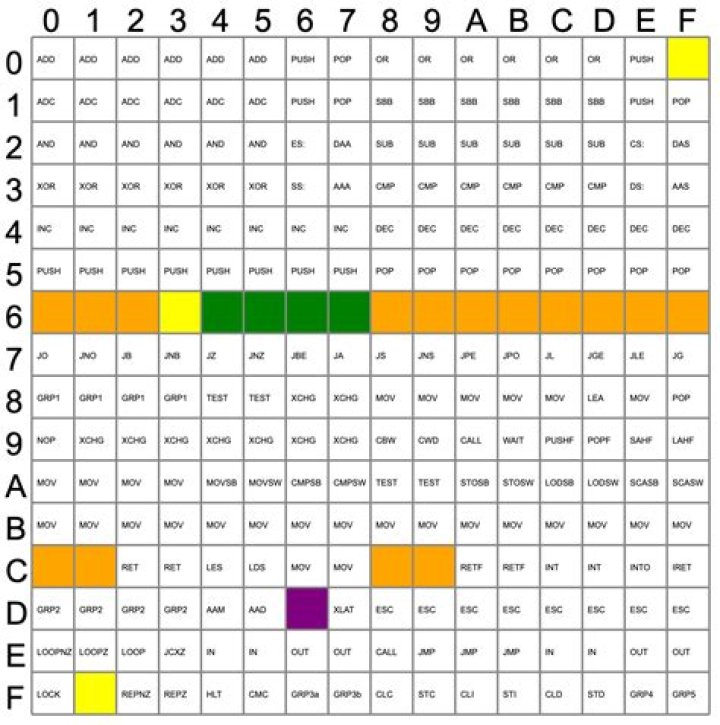

Which are of these examples of Intel 8086 opcodes?
Original 8086/8088 instructions
| Instruction | Meaning | Opcode |
|---|---|---|
| CLI | Clear interrupt flag | 0xFA |
| CMC | Complement carry flag | 0xF5 |
| CMP | Compare operands | 0x38…0x3D, 0x80…0x81/7, 0x82…0x83/7 (since 80186) |
| CMPSB | Compare bytes in memory | 0xA6 |
What is opcode in architecture?
An opcode is the first byte of an instruction in machine language which tells the hardware what operation needs to be performed with this instruction. Every processor/controller has its own set of opcodes defined in its architecture. An opcode is followed by data like address, values etc if needed.
What is opcode example?
Opcode meaning Short for Operation Code, which is the part of an instruction in machine language to specify the operation to be performed. Examples are “add memory location A to memory location B,” or “store the number five in memory location C.” “Add” and “Store” are the opcodes in these examples.
How many opcodes are there in 8085?
As we know that the 8085 microprocessor is an 8-bit microprocessor. So, a total of 256 instruction codes can be generated using 8-bit combinations. But out of 256 instruction codes, only 246 instruction codes are defined by INTEL Corporation for 8085 microprocessor.
What are the features of Intel 8086?
Features of 8086 It has an instruction queue, which is capable of storing six instruction bytes from the memory resulting in faster processing. It was the first 16-bit processor having 16-bit ALU, 16-bit registers, internal data bus, and 16-bit external data bus resulting in faster processing.
Which of the following jump opcodes are equivalent?
First, looking in array above, we see that several jumps have same flag conditions and would get same opcode. That’s why a JE instruction is equivalent to a JZ. There are also single jumps: JO….b. Equivalence class.
| $jump_type | Jump(s) |
|---|---|
| 2 | JB JC JNAE |
| 3 | JAE JNB JNC |
| 4 | JE JZ |
| 5 | JNE JNZ |
What is machine opcode table?
Machine Opcode Table (MOT) • MOT is a fixed length table i.e. we make no entry in either of the passes. • It is used to accept the instructions and convert/gives its binary opcode..
Where are opcodes stored?
Paper tape, mag tape, floppy disk, and hard disk are some of the external storage medium that the opcodes are stored on. etc. They’re loaded into the computer’s memory. When they’re being used that’s where they’re stored.
How do opcodes work?
An opcode identifies which basic computer operation in the instruction set is to be performed. It is used when writing machine code. It tells the computer to do something. Each machine language instruction typically has both an opcode and operands.
How are opcodes generated?
An opcode is a single instruction that can be executed by the CPU. In machine language it is a binary or hexadecimal value such as ‘B6’ loaded into the instruction register. In assembly language mnemonic form an opcode is a command such as MOV or ADD or JMP. The opcode is the MOV instruction.
