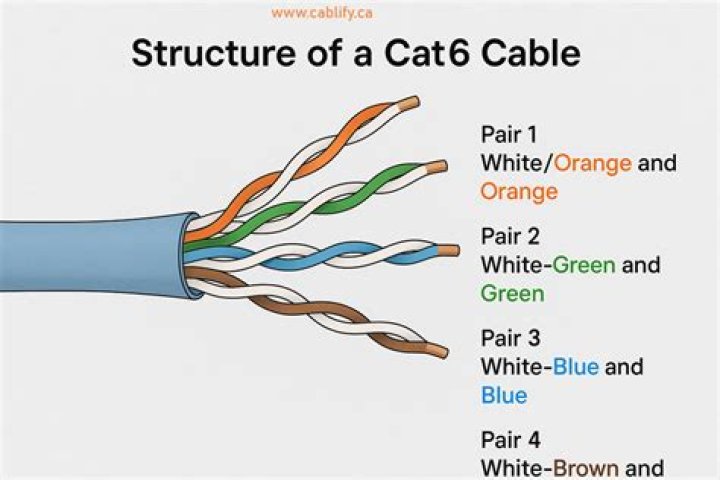

How many wires are in a standard Cat 6 cable?
8 wires
CAT5e and CAT6 are both twisted pair cables. Both use copper wires, with typically 4 twisted pairs (8 wires) per cable.
Are Cat5 and Cat6 connectors the same?
The main difference between cat5 and cat6 cables is reduced “crosstalk” and faster speeds in the transferring of data and connection. Cat5 and cat6 cables both share the same end piece, the plug that connects them to their end destination, being a patch panel or a modem.
What is the difference between a Cat5 and Cat6 connector?
A Cat6 cable is similar to a Cat5 ethernet cable — it consists of four pairs of twisted copper wire. However, it provides you with much more functionality. A Cat6 cable has a bandwidth capacity of 250 MHz, for example, and it offers you speeds of up to 10 Gbps. It’s also compatible with both Cat5 and Cat5E cables.
Are all wires used in Cat6?
Cat6 ethernet cables will have 8 copper wires inside them. These wires are used to connect to modular RJ45 connectors, keystone jacks and patch panels. Each ethernet standard can require a different amount of the wires inside Cat6 cables.
Which 4 wires are used in Cat6?
In case of CAT6 we are using two links for Tx and two links for Rx. In this scenario 4 wires namely 1,2,3,6 will be used as Active link for communication whereas 4,5,7,8 will be used as backup link.
Can I use Cat 5 connectors with Cat6 cable?
They can be plugged in to the same ports. Therefore, Cat6 cable works on Cat5 Network. However, Cat5 cable can’t be used on Cat6 network since Cat6 network has more requirements on cabling performances and capabilities, which Cat5 cable can not reach.
Can a Cat6 connector work on a CAT5e cable?
Although Cat6 solid conductor cables usually contain 23 AWG wire, Cat5e cables with 24 AWG conductors should seat and connect properly in the Cat6 connector. Conductors on the small side which worked for Cat5e may float or shift in the connector channels.
Can you use a Cat6 connector on Cat5e cable?
How many wires does a Cat6 cable have?
CAT5e and CAT6 are both twisted pair cables. Both use copper wires, with typically 4 twisted pairs (8 wires) per cable.
