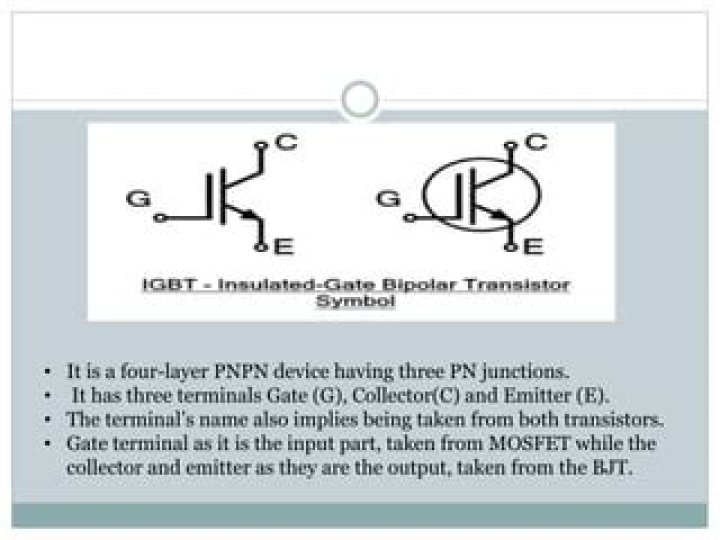

What are four layer pnpn devices?

The Shockley diode or PNPN diode is a four layer (P-N-P-N), two terminals (namely anode and cathode) semiconductor switching device. It is also called as four layer diode.

Is SCR is a bidirectional device?

SCRs are unidirectional devices (i.e. can conduct current only in one direction) as opposed to TRIACs, which are bidirectional (i.e. charge carriers can flow through them in either direction).

What are thyristor devices?

A thyristor (/θaɪˈrɪstər/) is a solid-state semiconductor device with four layers of alternating P- and N-type materials. In a three-lead thyristor, a small current on its Gate lead controls the larger current of the Anode to Cathode path.

What is Integrated Circuit and its types?

Integrated circuits can be classified into analog, digital and mixed signal, consisting of analog and digital signaling on the same IC. Digital integrated circuits can contain billions of logic gates, flip-flops, multiplexers, and other circuits in a few square millimeters.

What are the 4 modes of Triac?

TRIAC

  • Mode 1: MT2 is Positive, Positive Gate Current.
  • Mode 2: MT2 is Positive, Negative Gate Current.
  • Mode 3: MT2 is Negative, Positive Gate Current.
  • Mode 4: MT2 is Negative, Negative Gate Current.

What is Pnpn?

Definition. PNPN. Positive Negative Positive Negative. PNPN. Positive-Negative-Positive-Negative (devices)

Is thyristor and SCR same?

Thyristor is a four semiconductor layer or three PN junction device. It is also known as “SCR” (Silicon Control Rectifier). The term “Thyristor” is derived from the words of thyratron (a gas fluid tube which works as SCR) and Transistor. Thyristors are also known as PN PN Devices.

Why SCR is known as latch device?

Silicon Controlled Rectifier ( SCR) is a semiconductor device used in switching applications. Unlike Transistors, SCR latches once triggered and remain on even if the triggering voltage at the gate is removed.

What devices have diodes?

The application areas of diodes include communication systems as limiters, clippers, gates; computer systems as logic gates, clampers; power supply systems as rectifiers and inverters; television systems as phase detectors, limiters, clampers; radar circuits as gain control circuits, parameter amplifiers, etc.
