What are the applications of decade counter?
Applications of BCD Counter or Decade Counters
- Clock generation.
- Clock division.
- Integrated oscillator.
- Low power cmos.
- TTL compatible inputs.
- In frequency counting circuits.
Is decade counter and mod-10 counter same?
Counting Sequence of Decade counter A decade counter is called as mod -10 or divide by 10 counter. It counts from 0 to 9 and again reset to 0. It counts in natural binary sequence.
Are all mod-10 counters are BCD counters?
Similarly, the BCD counter is a Mod-10 counter, which resets to zero after counting from 0(0000) to 9 (1001), represents the result in decimal form. (that means divide-by-10 count). Hence, it is called a binary coded decimal counter (BCD Counter).
What is the decade counter?
A decade counter is one that counts in decimal digits, rather than binary. A decade counter may have each (that is, it may count in binary-coded decimal, as the 7490 integrated circuit did) or other binary encodings. A decade counter is a binary counter that is designed to count to 1001 (decimal 9).
How many flip-flops are needed for decade counter?
four flip-flops

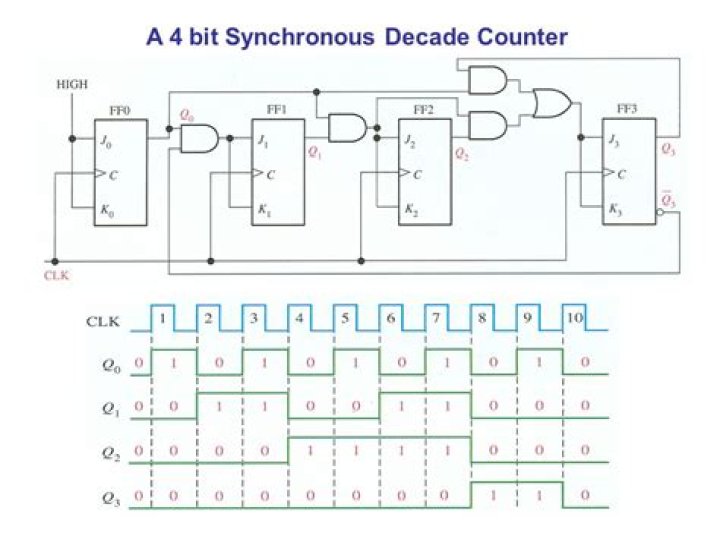

A decade counter counts in a sequence of ten and then returns back to zero after the count of nine. Obviously to count up to a binary value of nine, the counter must have at least four flip-flops within its chain to represent each decimal digit as shown.
Which IC is called ripple or decade counter?
d) IC 7492. Explanation: IC 7490 is called as decade counter or MOD-10. Thus, it has 10 states.
Which IC is used for decade counter?
A decade counter is very common in today’s electronics. Most commonly available as IC CD7490, contains multiple flip flops to convert BCD-to-decimal and is incorporated as part of larger integrated circuits. A decade counter counts in a sequence of ten and then returns back to zero after the count of nine.
Why asynchronous counter is called ripple counter?
Asynchronous Counters. Only the first flip-flop is clocked by an external clock. Asynchronous counters are also called ripple-counters because of the way the clock pulse ripples it way through the flip-flops.
How many flip flops are required to construct a decade counter 4 8 5?
How many flip-flops are required to construct a decade counter? Explanation: Number of flip-flop required is calculated by this formula: 2(n-1) <= N< = 2n. 24=16and23=8, therefore, 4 flip flops needed.
Which of the following IC can be used for decade counter?
Explanation: IC 7490 is called as decade counter or MOD-10. Thus, it has 10 states. 9. In a 4-bit decade counter, four master-slave flip-flops are internally connected to provide a ________ bit counter.
