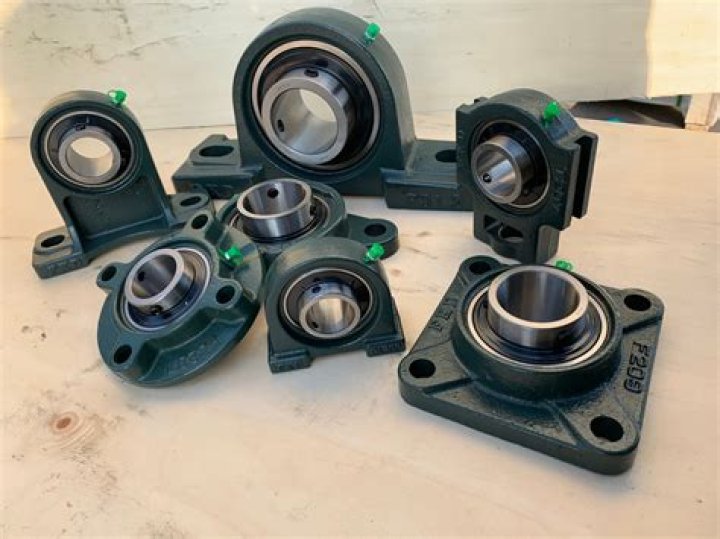

What are the different types of pillow block bearings?
A pillow block may contain a bearing with one of several types of rolling elements, including ball, cylindrical roller, spherical roller, tapered roller, or metallic or synthetic bushing.
What is the difference between pillow block and Plummer block?
Pillow blocks are used for more lightweight applications and plummer blocks are used to transfer high power and support heavy industrial loads. Plummer blocks and pillow blocks are designed to safely mount a bearing which lets its outer ring to not move but allows the inner ring to rotate.
How many types of Plummer blocks are there?
SKF manufacture three different types of plummer block housings namely, the ‘SNA’, ‘SN’ and ‘SD’ plummer blocks. SNA plummer blocks are designed for use with bearings mounted on adapter sleeves or with a cylindrical bore.
What is pillow block used for?
Pillow block bearings are actually housings that have a bearing fitted into them. They are usually mounted in cleaner environments and are not meant to bear higher loads. The main application is to mount bearings safely with a stationary outer ring and a rotating inner ring.
What is UCF bearing?
The UCF pillow block (RHP SF and MSF series) consists of a bearing insert with a spherical outer diameter in a cast iron housing. The bearing is usually fixed to the shaft by means of two set screws in the extended portion of the inner ring.
What is UCP bearing?
Description: The UCP pillow block consists of a bearing insert with a spherical outer diameter in a 2 bolt cast iron housing. The bearing is usually fixed to the shaft by means of two set screws in the extended portion of the inner ring.
What type of bearing is a Plummer block what is its application?
Plummer block housings can be used with high-capacity spherical roller bearings or self-aligning ball bearings. They are manufactured from high-strength cast iron as standard but are also available in cast steel or spheroidal graphite cast iron.
What is flange bearing?
What is a flange bearing? Flange bearings consist of a cylindrical body with a flange at one end. These bearings are capable of supporting radial loads as well as light axial loads due to the flange providing a thrust surface.
What is UCP bearing full form?
One unit of pillow block consists of deep groove ball bearings with spherical outer rings closed in double sides and a housing made by gray cast iron or punches steel. …
What UCF means?
UCF most commonly stands for the University of Central Florida, a metropolitan public research university located in Orlando, Florida, United States.
