What are the six typical structural connection types?

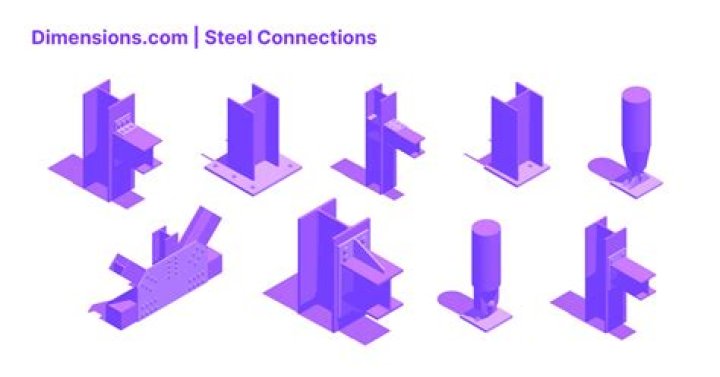

Types of Steel Beam Connections
- Bolted framed connections.
- Bolted seated connections.
- Welded framed connections.
- Welded seat connections.
- End plate connections.
- Special connections.
- Simple, rigid and semi-rigid connections.
What are the various types of connections used for connecting Thestructural members?
What are the types of Steel Beam Connections?
- Bolted framed connections.
- Bolted seated connections.
- Welded framed connections.
- Welded seat connections.
- End plate connections.
- Special connections-simple, rigid and semi-rigid connections.
What are the two main types of moment resisting connections?
The most commonly used moment resisting connections are bolted end plate beam-to-column connections; these are shown in the figure below.
- Full depth end plate.
- Extended end plate.
- Stiffened extended end plate.
- Haunched beam.
What is stiffened connection?
(iii) Stiffened seated connection (Fig. 4): If shear force to be transferred in the beam is still large, the seat angle may fail. To strengthen it a stiffener angle may be provided. Such connections are known as stiffened seated connection.
How many types of connections are there in steel structure?
Connections are classified as axial, shear (semi-rigid), or moment (rigid) connections based on the primary load that the connection is to carry.
What are different types of connections?
Some of the most widely used Internet connections are described below.
- Mobile. Many cell phone and smartphone providers offer voice plans with Internet access.
- WiFi Hotspots.
- Dial-Up.
- Broadband.
- DSL.
- Cable.
- Satellite.
- ISDN.
What is the difference between end and edge distance?
Explanation: Edge distance is distance at right angles to the direction of stress from centre of hole to adjacent edge. End distance is distance in the direction of stress from centre of hole to end of element.
What are the different types of bolted connections?
(b) Classification based on the type of force experienced by the bolts: The bolted connections can also be classified based on geometry and loading conditions into three types namely, shear connections, tension connections and combined shear and tension connections.
What is difference between moment connection and shear connection?
A Moment Connection in structural engineering is a joint that allows the transfer of bending moment forces between a column and beam (or any other two members). While Shear Connections are dependent mostly on the web of a section, moment connections add to that by strengthening the connectivity of the flanges.
Are bolted connections fixed or pinned?
It is usually conservative approach that the connection is considered as pinned connection and most structural engineers do that.
What is stiffened and unstiffened elements?
Thin walled members are composed of plate elements which are supported along both edges parallel to the direction of compression (referred to as stiffened elements) and supported along only one edge parallel to the direction of compression with the other completely free (referred to as unstiffened elements).
What is the minimum pitch distance?
What is the minimum pitch distance? Explanation: Pitch is centre to centre spacing of bolts in a row, measured along direction of load. Distance between centre to centre of fasteners shall not be more than 2.5 times nominal diameter of fasteners.
