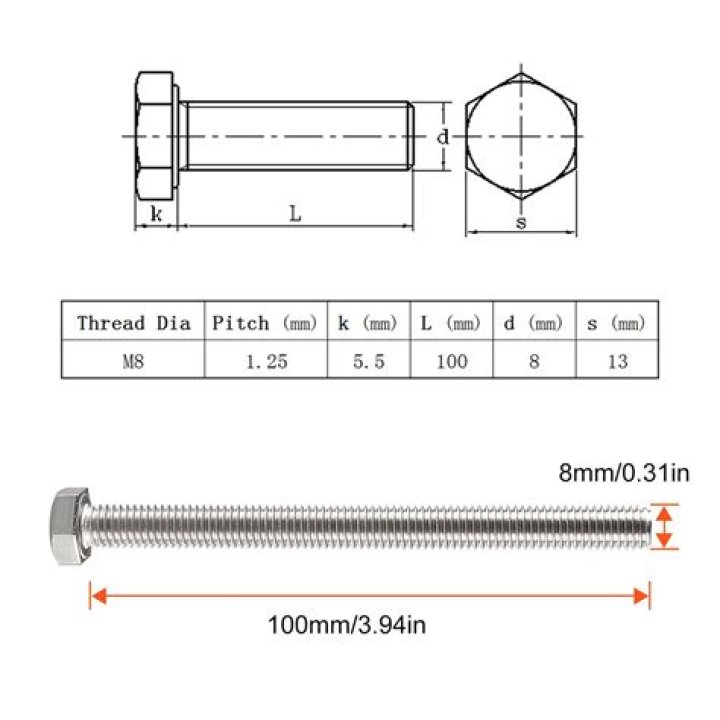

What diameter are M8 bolts?
So an M8 bolt would have a shaft diameter that’s slightly under 8mm which means that the bolt should fit through an 8mm hole. But it’s common practice to drill clearance holes that are slightly larger to allow for misalignment.
What does M8 1.25 mean?
8 means 8mm nominal diameter (the thread will be less than 8 mm at the widest point) X 1.25 means 1.25 mm per thread (thanks the standard coarse pitch for this thread)
What size socket fits an M8 bolt?
Size Chart
| Bolt size | Size | Tolerance |
|---|---|---|
| 5/16″UNF | 1/2″ | 13.00 |
| M8 | 13mm | 13.30 |
| 1/4″BSW | 13.64 | |
| 14mm | 14.35 |
What size are M8 nuts?
8mm
M8 Hexagon Nuts (DIN 934) – Marine Stainless Steel (A4) Technical Specification
| Finish | Natural |
|---|---|
| Nut Width A/F (J) | 13mm |
| Nut Width A/P (P) | 14.95mm |
| Thread Pitch | 1.25mm |
| Thread Size | M8 (8mm) |
What size is M8 in inches?
| Tap size | Basic major dia (mm) | Basic major dia (inch) |
|---|---|---|
| M5 x 0.8 | 5mm | .1969 |
| M6 x 1 | 6mm | .2362 |
| M8 x 1.25 | 8mm | .3150 |
| M8 x 1 | 8mm | .3150 |
What size is M8 drill bit?
Tap Size
| Tap Size | Drill Size |
|---|---|
| M6.3 x 1 | 5.5mm |
| M7 x 1 | 6.1mm |
| M8 x 1 | 7.1mm |
| M8 x 1.25 | 6.7mm |
What is M8 bolt inches?
Table 3.
| Metric | Closest Inch |
|---|---|
| M8-1.25 | 5/16-18 (Smaller) |
| M10-1.5 | 3/8-16 (Smaller) |
| M12-1.75 | 1/2-13 (Larger) |
| M14-2.0 | 9/16-12 (Larger) |
What size is M8 screw in inches?
What does M8 mean?
M8 means “Mate.” M8 uses the number 8 to replace the letters “ate.” Here are some other terms that make use of this efficiency: D8 (Date)
Is an M8 bolt 8mm wide?
M8 is the designation for a metric (M) sized bolt or screw that is 8mm (8) in diameter. This is roughly equivalent to a 5/16 bolt or screw.
