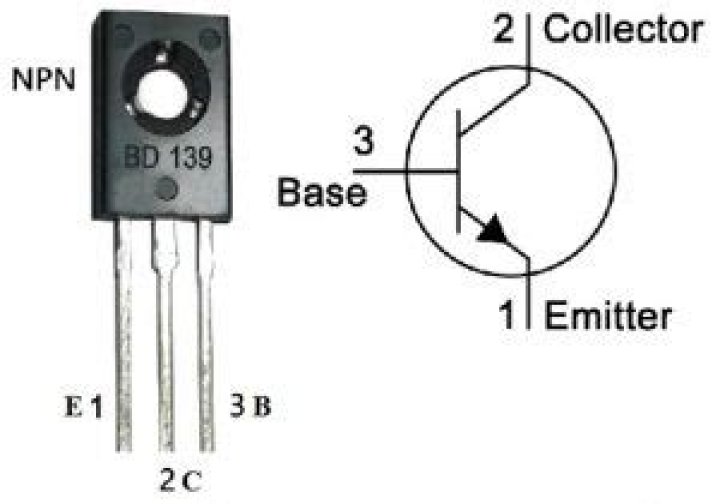

What does a BD139 transistor do?
BD139 is a Bipolar NPN transistor, it is mounted in the SOT-32 plastic package. It is designed for audio amplifier and driver utilizing complementary circuits. BD139 is used in different industrial projects such as RF amplifier and Switching Circuits.
Is the BD139 an NPN or PNP transistor?
They are designed for audio amplifiers and drivers utilizing complementary or quasi-complementary circuits. The NPN types are the BD135 and BD139, and the complementary PNP types are the BD136 and BD140.
What is BD136?
A general-purpose with medium power BD136 transistor is mainly used for audio amplification & switching purposes. This kind of transistor belongs to the family of PNP. It can also be used as an amplifier within audio & signal amplification-based circuits. The package used to manufacture this BD136 Transistor is TO126.
Is BD139 a Mosfet?
This blog covers BD139 Transistor pinout, datasheet, equivalent, features, and other information on how to use and where to use this device….BD139 Parameters.
| Mfr | STMicroelectronics |
|---|---|
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA |
| Current – Collector Cutoff (Max) | 100nA (ICBO) |
Is D882 NPN or PNP?
The D882 is a medium power NPN transistor that features a high collector-emitter breakdown voltage and medium current carrying capability.
What type of transistor is BD139?
BD139 is a Bipolar NPN transistor, it is mounted in the SOT-32 plastic package. It is designed for audio amplifier and driver utilizing complementary circuits. BD139 has a gain value of 40 to 160, which determine the amplification capacity of a transistor.
Why do we use a 2N3055 transistor in a regulator?
12V DC regulator circuit using 2N3055. It is a series voltage regulator because the load current passes through the series transistor. As the circuit diagram below, The input terminal wants an unregulated DC supply,15V to 20V. Then, the regulated voltage will come out to the load.
