What does VSS and VDD mean?
Vdd = Voltage Drain Drain. Vss = Voltage Source Source. Vee = Voltage Emitter Emitter. GND = Ground.
What does VDD stand for voltage?
drain power voltage
The primary power voltage on MOS devices that require a potential that differs from the normal system logic voltage. The term VDD is used interchangeably with VCC on devices that use 5‑V supplies.
What does VSS mean voltage?
When the only positive power supply is used then VSS (Voltage Source Supply) means ground or zero. The Intel 8085 Microprocessor needs a power supply of +5 V DC for its working.
Is VDD the same as VCC?
Technically Vcc/Vee is for bipolar and Vdd/Vss for FETs, but in practise today Vcc and Vdd mean the same, and Vee and Vss mean the same.
Is VSS the same as VDD?
Nowadays it is always used Vdd and Vss to refer to the positive and negative voltage respectively. Vdd is normally was used to be 5V but nowadays is 3.3V or even lower 1.8V or 1.2V. Vss is referred to be zero volts.
Why is ground called VSS?
They are all supply voltages. Vcc = Collector supply voltage, Vee = Emitter supply, Vbb= Base supply voltage, Vdd = Drain supply, Vss = source supply. Since there is no notion to identify ground (0) this method was simply adopted.
What is VSS in LCD?
In practice today VCC/VDD means positive power supply voltage and VEE/VSS is for negative supply or ground.
What is VDD and VSS in pic16f877a?
VDD is postive supply and VSS is negative supply. So, those are correct. How are you going to program the PIC?
What does VSS mean in medical terms?
vital signs stable
List of medical abbreviations: V
| Abbreviation | Meaning |
|---|---|
| VSD | ventricular septal defect |
| VSR | ventricular septal rupture (see myocardial rupture) |
| VSS | vital signs stable |
| VT | ventricular tachycardia verotoxin |

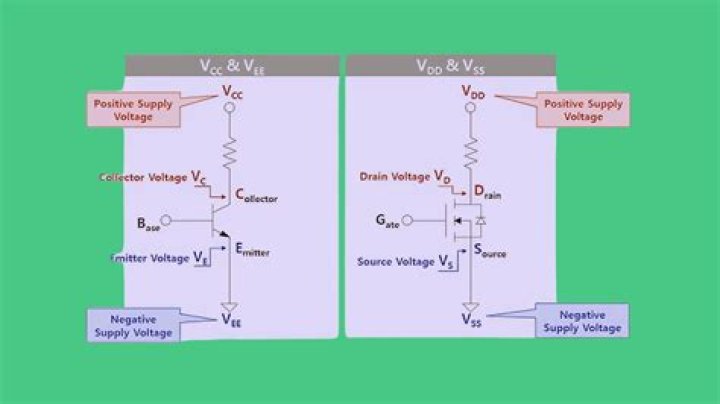

What is the difference between VCC VDD and VSS?
Vcc = Collector supply voltage, Vee = Emitter supply, Vdd = Drain supply, Vss = source supply. The voltages can be negative or positive depending on the the device and the circuit configuration. In circuits using NPN transistors Vcc is generally positive but if you were using PNP transistors then Vcc would be negative.
Is VDD the same as ground?
No, VDD is the positive power voltage and VSS is the 0 V (or “ground” voltage).
