What frequency does a magnetron use?
A: A magnetron is a specialized vacuum tube which does one thing: it is a power oscillator source for frequencies of several hundred MHz to several GHz. Depending on size and other factors, it can produce tens and hundreds of watts to kilowatts.
How do you control back heating in a magnetron?
If the magnetic field is made larger than the critical field (B>Be), the electron experiences a greater rotational force and may return back to cathode quite faster. All such electrons may cause back heating of the cathode. This can be avoided by switching off the heater supply after commencement of oscillation.
What is pi mode in magnetron?
For sustaining the oscillation in a magnetron, the phase difference between two adjacent anode plate should equal (2πn/N) where N is the number of cavities and n is any integer, this gives rise to π mode operation.
What is the disadvantages of magnetron?
Following are the disadvantages of Magnetron: ➨They are designed to operate in π-mode where phase difference between adjacent resonators is 180 degrees. In order to have strong interaction between wave on anode and electron beam, phase velocity of wave should be nearly equal to drift velocity (VΦ).
How many running hours must be consumed before replacing magnetron?
Based on typical marine radar use, manufacturers recommend replacing magnetrons between 2,000 and 6,000 transmitting hours. However, CEAT found that magnetrons used in avian radar typically could be used for 12,000 hours of continuous operation before needing replacement.
What are frequency pulling and frequency pushing in a magnetron?
Frequency pulling in magnetrons : Frequency pulling is caused by changes in the load impedance reflected into the cavity resonators. Frequency pushing in magnetrons: Frequency pushing is due to the change in anode voltage which alters the orbital velocity of electron clouds.
Why strapping is used in magnetron?
The cavity magnetron is acts like a microwave oscillator and generates microwaves and it uses strapping to prevent mode jumping.
What is frequency pushing and pulling in magnetron?
What is RF sputtering?
RF-sputtering is a suitable technique to fabricate optical planar waveguides and photonic microcavities operating in the visible and NIR regions. Sputtering techniques are widely used in industrial process because high quality films can be obtained at low temperature substrates.

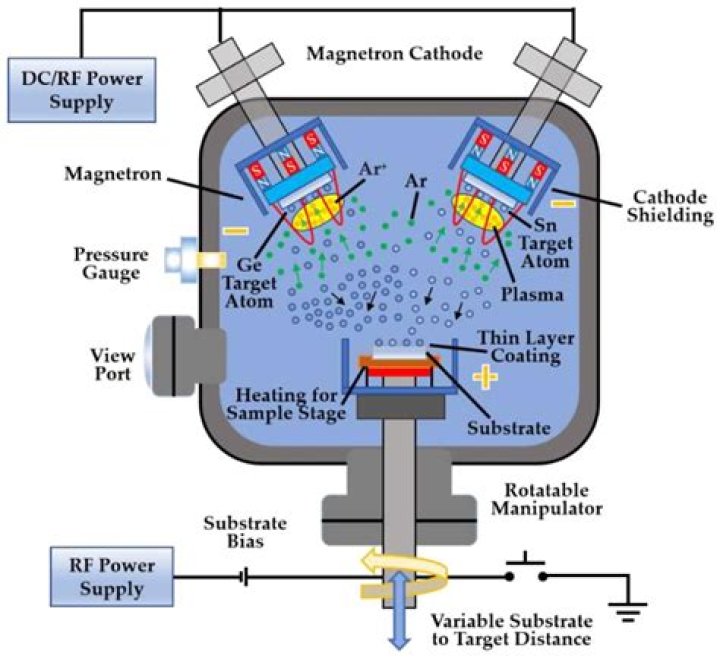

What is dc magnetron sputtering?
Magnetron sputtering is a high-rate vacuum coating technique that allows the deposition of many types of materials, including metals and ceramics, onto as many types of substrate materials by the use of a specially formed magnetic field applied to a diode sputtering target.
Why is it important to always adjust your radar’s gain and clutter settings right after taking over the watch?
GAIN: The gain control on the keyboard is used to adjust the sensitivity of the radar. It should be so adjusted that the background noise is just visible on the screen. In simple words, if the gain is set too low, weak echoes may be missed while excessive sensitivity yields too much background noise.
