What is 3 core armoured cable used for?

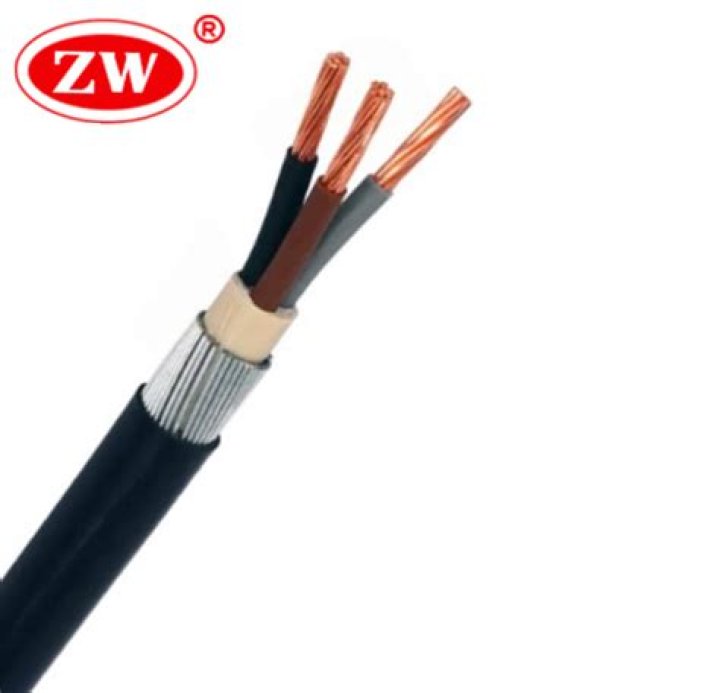

3 core armoured cable is generally used to supply mains power to domestic and outdoor buildings such as sheds, consisting of a set of insulated twisted copper wires coloured brown, blue/green and yellow which are protected by a black metal sheath.
Can armoured cable be extended?
Yup, just need the proper kit. Yes armoured cable can be joined, you just need the right bits.
How many amps can a 16mm SWA take?
The swa cable is 3-core. The house is occupied by an elderly lady who wouldn’t use any equipment with a big load. I was of thinking of using 16mm because the consumer unit is the kitchen and it would be easier to conceal than 25mm and 16mm is able to handle up to 94A.
How many amps can 2.5 mm armoured cable take?
the current carrying capacity of buried 2.5mm SWA is 29amps so the max demand is 16+6 = 22amps the demand will be lite and also the cable was already laid!
Do I need Armoured cable for outside lights?
Keeping the lights on requires the cable to be selected and installed correctly with a focus on protecting it both mechanically and electrically. It’s a requirement of the Wiring Regulations that any cable buried in the ground shall have an earthed armour as part of its design.
Can you join SWA?
SWA can be joined to a CU by using an earthing ring (banjo) on the gland. The earthing ring is inserted through the gland and tightened to the CU via a lock ring.
How many amps can a 6mm SWA cable take?
Consequently, there is no definitive amount of amperes that a 6mm SWA cable can take. The 6mm SWA cable current rating may vary depending on the ambient temperature and the conductor number. For instance, a 3 core SWA cable has a current rating of 53 amperes.
What size wire is rated for 60 amps?
6 AWG
For 60 ampere breakers, electricians and professionals suggest using a wire size gauge ranging from 6 AWG to 4 AWG. All household wires have a rating of at least 600V, so only amperage really matters when it comes to determining wire gauge.
