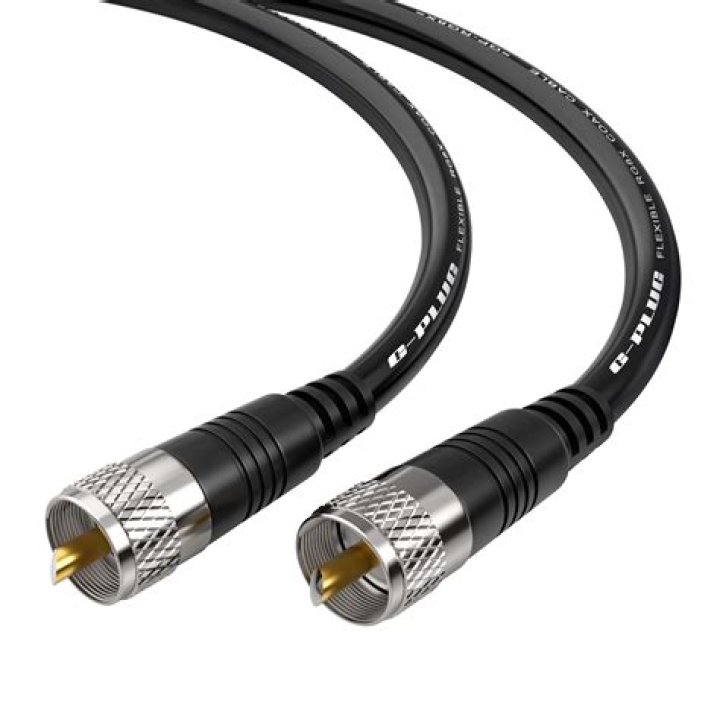

What is 50 Ohm coaxial cable?
So 50 ohm cables are intended to be used to carry power and voltage, like the output of a transmitter. If you have a small signal, like video, or receive antenna signals, the graph above shows that the lowest loss or attenuation is 75 ohms. Most often, these signals end up in antennas.
What is the difference between 50 Ohm and 75 Ohm coax cable?
Impedance is how cables are measured. It refers to the amount of resistance compared to the flow of electrical energy. A 50-Ohm cable will provide a better result than a 75-Ohm cable. This means that you will achieve better performance from your installs with a lesser Ohm “number”.
What is the purpose dielectric medium in coaxial cable?
Coaxial cables require an internal structure of an insulating (dielectric) material to maintain the spacing between the center conductor and shield. The dielectric losses increase in this order: Ideal dielectric (no loss), vacuum, air, polytetrafluoroethylene (PTFE), polyethylene foam, and solid polyethylene.
What is the difference between RG 58 and RG 59?
A: RG-58 is 50-ohm coaxial cable and is typically used for radio communications and thin Ethernet networks. RG-59 is 75-ohm coaxial cable for CCTV and cable TV. Some also use RG-6 for video connections.
Can you mix 50 Ohm and 75 Ohm?
While it’s possible with the use of special cable connectors and adapters, however, it’s not recommended. Because mixing and matching 50 ohm and 75 ohm cables and systems would lead to further signal loss, so it’s best to stay consistent with the same type of relevant 50 or 75 ohm system and accessories.
Are there different grades of coaxial cable?
There are two main types of coaxial cables – ones with an impedance of 75 Ohm (Ω) and ones with an impedance of 50 Ohm. Cables with 75 Ohm are mostly used for video signals, while 50 Ohm cables tend to be used for data and wireless communications.
Is coaxial immune to EMI?
The correct answer is coaxial cable. It has a consisting of braided wires, metal foil, or a combination of both. Because of this shield, coax is highly resistant to electromagnetic interference (EMI).
