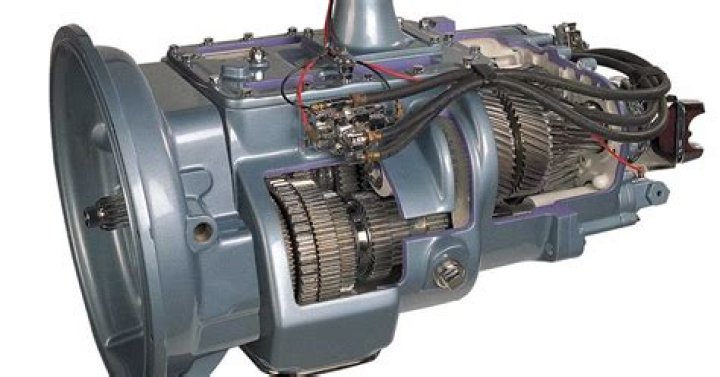

What is a 8LL transmission?
The Fuller 8LL transmissions provide drivers with the versatility they need for a mix of on- and off-highway applications. These transmissions offer eight road speed gears and two additional deep reduction ratios in low and reverse.
Is 8LL Transmission good?
It works very well for off road use and short hauls. You just have to get used to shifting it. The 3 and fourth gear is reversed, back for 3rd 7th and forward for 4th 8th. I have an 8LL with a C12 in my 99 Pete 357, I get along fine with it.
What speed is a 8LL transmission?
Based on engine operating at 2100 RPM and top speed of 65 MPH.
How much does a 8LL transmission weigh?
Increased lubrication protection with optional integral oil pump. Standard SAE 6-bolt and 8-bolt PTO openings and optional thru-shaft PTO provision at rear….8LL.
| Product Snapshot | |
|---|---|
| Speeds: | 10 forward, 3 reverse |
| Torque Capacity Lbs.Ft. (Nm): | 860-1650 (1166-2237) |
| Weight Lbs. (kg): | 690 (313) |
| Length Inches (mm): | 33.1 (841) |
Who makes the 8LL transmission?
Eaton Fuller
The Eaton Fuller 8LL manual transmissions provide drivers with the versatility they need for a mix of on- and off-highway applications. These transmissions offer eight road speed gears and two additional deep reduction ratios in low and reverse.
How much does an 18 speed Eaton Fuller transmission weight?
716 lbs.
Eaton 18 speed Transmission
| SPECIFICATIONS | CAPACITY | WEIGHT* |
|---|---|---|
| RTLO-16918B | 1650 lbs.ft. [2237 Nm] | 716 lbs. [324.77 kg] |
| RTLO-18918B | 1850 lbs.ft. [2508 Nm] | 716 lbs. [324.77 kg] |
| RTLO-20918B | 2050 lbs.ft. [2779 Nm] | 716 lbs. [324.77 kg] |
| RTLO-22918B | 2250 lbs.ft. [3050 Nm] | 716 lbs. [324.77 kg] |
What is better a 6 speed or 9 speed transmission?
The 6 speed is most rugged and best for towing or heavy cars. The 9 speed is similar to the 6 but less rugged and better mpg. It also cost more if it breaks.
