What is a double stub tuner?
Double Stub Short Circuit Tuner. A double-stub transmission line impedance matching network is composed of two short circuited sections of transmission line, separated by a length of transmission line, placed along the main signal line. The short circuited sections provides an equivalent shunt susceptance.
How do you match double stubs?
Double-Stub Matching Technique The technique uses two stubs with fixed locations. As the load changes only the lengths of the stubs are adjusted to achieve matching. stub is located at a convenient distance from the load say (Figure). The second stub is located at a distance of from the first stub.
What is stub tuner?

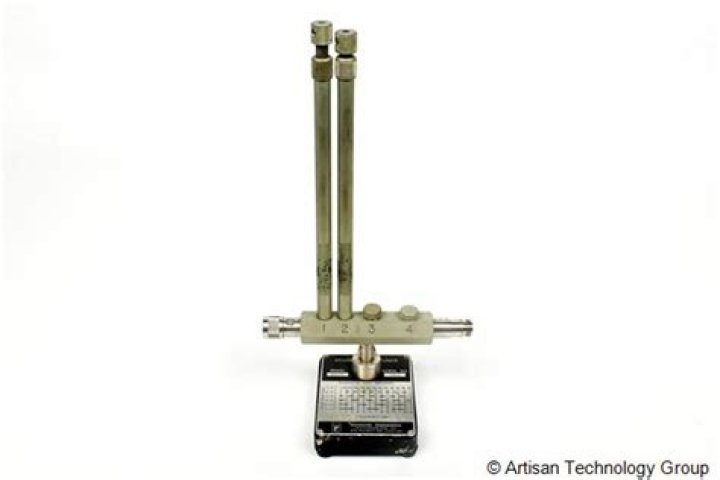

Stub tuners are impedance transformers that are designed to introduce a variable shunt susceptance into a coaxial transmission line. They consist of one or more short-circuited, variable length lines (stubs) connected at right angles to the primary transmission line.
What is the disadvantage of double stub matching?
The drawback of double stub tuning is that a certain range of load admittances cannot be matched once the stub locations are fixed. The length of the second stub is selected to eliminate the imaginary part of the admittance at the location of insertion.
What is a Smith chart used for?
The Smith Chart is used to display an actual (physical) antenna’s impedance when measured on a Vector Network Analyzer (VNA). Smith Charts were originally developed around 1940 by Phillip Smith as a useful tool for making the equations involved in transmission lines easier to manipulate.
What is the difference between single stub matching and double stub matching?
Double stub matching is used as an alternative to single stub because in single stub the stub is placed only at specific point and that specific point may be at a wrong place where it is not needed so the double stubs used to match the load .
What is double stub matching technique What is its advantage over the single stub matching technique?
(ii) Double stub matching requires only the length of the stubs being changed while the position (or location) of the stubs over the transmission line can be arbitrary. This is a definite advantage over single stub matching.
What is single stub matching?
Single Stub Matching Stub matches are widely used to match any complex load to a transmission line. They consist of shorted or opened segments of the line, connected in parallel or in series with the line at a appropriate distances from the load.
What is stub in RF?
In microwave and radio-frequency engineering, a stub or resonant stub is a length of transmission line or waveguide that is connected at one end only. Stubs are commonly used in antenna impedance matching circuits, frequency selective filters, and resonant circuits for UHF electronic oscillators and RF amplifiers.
What is the advantage of double stub matching?
Explanation: Reducing the distances between the stubs reduces the forbidden area in the smith chart which involves the load impedances that cannot be matched. Thus, more number of load impedances (range) can be matched to the transmission line.
What are constant s circles?
A constant-|Γ| circle, also called a constant standing wave ratio (SWR) circle, consists of points that have the same magnitude in reflection coefficient. Moving along such a circle corresponds to moving along a lossless transmission line. Moving along such a circle corresponds to changing the real part of impedance.
