What is a SORF flange?

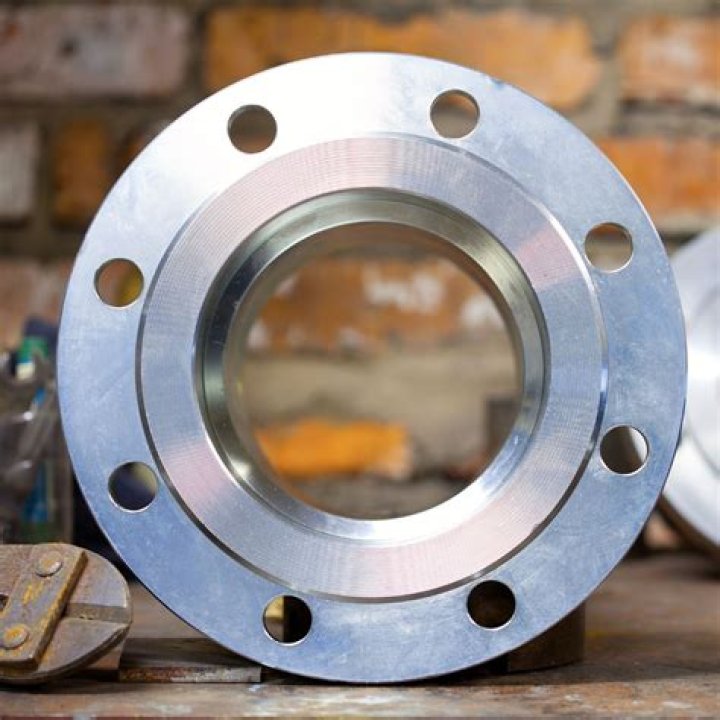

Slip-On Raised Face Flanges (Sorf) Slip-on flanges are easy to use in fabricated applications. These flanges are attached to the pipe by filler welding at the hub and at the end of the pipe inside the flanges. These are available in the wide variety of sizes and application.
What does a blind flange look like?
Blind flanges, just like standard pipe flanges, can be raised face (RF) or flat faced (FF). If the flange is RF we would recommend a standard ring gasket that is appropriate for the service and/or test. A common request for gaskets with a blind flange is for a gasket with no ID; a gasket with a solid center.
What is a reducing flange?
Reducing flanges are a specialty flange that are most often used on projects that require the fitting together of different sized pipes. There are several types of reducing flanges including weld-neck reducing flanges, slip-on reducing flanges and threaded reducing flanges.
What is a BS10 flange?
The British Standard BS10, 1962 is a standard Specification for Flanges and Bolting for Pipes, Valves, and Fittings. The bs 10 flange dimensions in mm covers boss, plain, integrally cast or forged, and welding neck type flanges, in flanges as per bs 10 table e.
Where is SORF flange used?
Slip on (SORF) Designed to be used in low temperature, low pressure processes, slip on flanges are favoured by engineers in the oil and gas industry due to their economical value in comparison to the wnrf.
What is a RFWN flange?
RFWN Flange (Raised Face Weld neck Flange) are one of the most commonly used flange in the piping industry. Weldneck flange bore is machined to match the ID of the pipe or fitting. This creates a smooth transition to and from the weld neck flange and prevents turbulence at the welding neck.
How do you identify a flange?
You need to find the outer diameter, the inner diameter, the number of bolt holes, bolt hole diameter, and the bolt circle diameter. Bolt circle diameter (B.C.) is one of the most important measurements to make when identifying a flange.
What is rating of flange?
The term “flange rating” (or class) refers to the maximum pressure (in psi or bars) that a flange withstands at increasing temperatures. Flanges with a higher rating (class) are stronger than flanges with lower ratings, as they bear more pressure at increasing temperatures.
What is the difference between Series A and B flanges?
Series A flange is heavier, thicker and cost more whereas series B flange has more bolt holes and is lighter cheaper than series A. API605 flange and series B flanges are same thing.
Is 6392 a flange?
IS 6392 is a specification used to produce steel flanges in piping systems….
| Specifications | Is 6392 Flange |
|---|---|
| Flanges Marking | All Flanges are marked as follows: Supplier or Manufacturer’s Name, Size, Class, Bore, Dimension, Material, Heat No. Or according to the customer’s request. |
What are the different types of flanges?
Most commonly used flanges are weld neck flange, slip on flange, blind flange, socket weld flange, threaded flange and lap joint flange (RTJ Flange). This type of connection in a pipe flange allows for ease of disassembly and separation for repair and regular maintenance.
