What is an IFF interrogator?

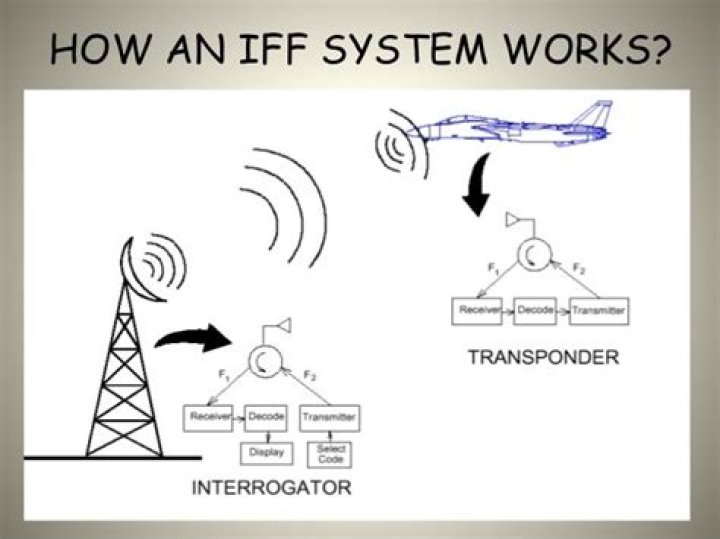

Identification Friend or Foe (IFF) Interrogators are electronic devices that emit an “interrogating” radio signal at one frequency, prompting an IFF Transponder to emit a reply signal at a different frequency, indicating that an approaching aircraft is “friendly.”
What are the modes of IFF?
IFF is used by both military and civilian aircraft….Modes
- Mode 1 – military only; provides 2-digit octal (6 bit) “mission code” that identifies the aircraft type or mission.
- Mode 2 – military only; provides 4-digit octal (12 bit) unit code or tail number.
What does Mode 5 IFF do?
The Mark XIIA Mode 5 IFF is a cooperative identification system that uses interrogators and transponders located on host platforms to send, receive, and process friendly identification data.
What is IFF Mode 3 a?
3. A. Provides a 4-digit octal identification code for the aircraft, set in the cockpit but assigned by the air traffic controller. Mode 3/A is often combined with Mode C to provide altitude information as well. C.
What is an APX 119?
The APX-119 is a combined Mk XII / Mode S / Mode 5 capability transponder, designed to provide military aircraft with a secure combat identification capability to help reduce fratricide and enhance battlespace awareness, while providing safe access to civilian airspace.
How many modes of IFF are there?
four
The system was initially intended to distinguish between enemy and friend but has evolved such that the term “IFF” commonly refers to all modes of operation, including civil and foreign aircraft use. There are four major modes of operation currently in use by military aircraft plus one submode.
How many IFF modes are there?
How many modes is IFF?
This can be divided into four modes, two for military use and two for both military and civilian aircrafts: Mode 1 – This mode has 64 reply codes, and is used in military air traffic control to determine what type of aircraft is answering or what type of mission it is on.
What is APX 123?
Common transponder. BAE Systems’ common transponder (CXP) is the U.S. Navy and Army standard transponder for all retrofit and new product applications. Our CXP products incorporate all of the advanced features required in today’s global military and civil air traffic control environments.
What is the difference between Mode 4 and Mode 5?
Mode 5 IFF is an enhancement to legacy Mode 4 IFF, which uses Morse code-like signals and which has been in use since the mid-1950s for military identification. Mode 5 is to upgrade signaling waveforms and allow pilots to interrogate friendly aircraft’s IFF systems at longer ranges using a secure, encrypted code.
