What is butt joint glazing?
Butt glazing is an installation where the glass is retained at the head and sill, with no structural support on the vertical edges. The vertical joints between the glass lites are typically weather-sealed with silicone. Butt glazed applications may feature exposed edges, often requiring a glass edge specification.
What is structural sealant glazing?
Silicone structural glazing is the use of a silicone sealant for the structural transfer of loads from the glass to its perimeter support system and retention of the glass in the opening. Insulating glass used in structural glazing must have silicone units.
What type of silicon can be used in exterior glazing?
Low Modulus Acetoxy (LMA) sealants are the cost-effective “all-rounders”, they are suitable for a wide variety of general building, glazing interior, and exterior applications and adhere to many common building materials.
What is flush glazing?
Glazing in which glass is set in a recess in a frame; stops (if any are used) also are recessed; the glazing is flush with the frame jamb surface.
Can I use silicone on glass?
Silicone sealants can be used to bond many common materials, including plastic, metal, glass, and ceramic. Probably the most common household use for silicone caulk adhesives is caulking cracks.
Can I use sealant on glass?
Windshield Glass Sealant can be used to fix small cracks around a windshield that may cause it to leak. Some car models have a larger gap between the frame of the car body and the windshield. Water can enter this gap and freeze; over time, this causes the gasket and adhesive inside to get brittle and crack.
What is the difference between curtain wall and structural glazing?
Traditional captured curtain wall systems have pressure plates and caps that can conduct large amounts of heat in or out of the façade depending on the season. Since there is little to no exposed exterior metal, there is also less thermal bridging with structural glazing, saving on energy consumption costs.
What is the difference between 2 sided and 4 sided SSG curtain wall?
As their names suggest, Four-Sided SSG systems feature Silicone joints around all four edges of the glazing while Two-Sided SSG systems use Silicone on just two sides, leaving the other two sides capped as in conventional systems.
What’s the difference between silicone and sealant?
Silicone sealants are based on silicone polymers and cure to form a tough flexible rubber suitable for both household and industrial applications. Acrylic sealants are based on acrylic polymers and are recognised by several other names including decorators caulk, painters caulk or decorators acrylic.
What is the difference between RTV silicone and 100 silicone?
The key difference between RTV and silicone is that RTV is a general term for room temperature vulcanizing silicone, whereas silicone is a polymer material having repeating units of siloxane. RTV stands for room temperature vulcanizing. 100% silicone will perform better than “extended”.
How are glass panels formed for butt joint glazing?
A glass installation technique in which two glass panels do not meet in a mullion; instead, a weatherproof vertical joint is formed between them by means of a sealant. McGraw-Hill Dictionary of Architecture and Construction. Copyright © 2003 by McGraw-Hill Companies, Inc. Want to thank TFD for its existence?
Where do I find the glass installation guide?
This work should be specified in the Installation / Glass / Glazing / Caulking section of the specifications. These are recommended guidelines for the installation of single-glazed glass into exterior hollow metal. A primary source of glass failure is the interface of the glass edge and the hollow metal frame.
How tall is Forster Fuego Light butt joint glazing?

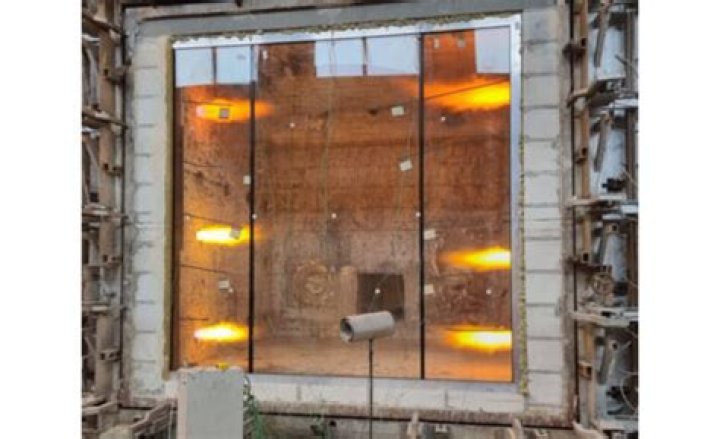

Forster fuego light butt-joint glazing is not only visually attractive, but also provides fire resistance to class EI30/EI60. The glazing elements can be placed next to each other with a minimal joint, forming a continuous transparent and smooth front. Vertical screen elements can achieve up to 3.5 meters in height. Construction
How much glazing do I need for a steel door frame?
Deduct 1/4” from the opening size, and 1/4” from the opening height. This is your exact glass size, which will provide a 1/8” glazing reveal on all 4 sides between glass and opening. This is also known as the “glass clearance.” ■ Determining Glazing Tape to Use First measure the glazing pocket width.
What’s the difference between butt joint and rabbeted glazing?
Butt Joint Glazing . In Butt Joint Glazing, the glass is supported on only two edges. Glass lites are retained at the head and sill in a traditional rabbeted glazing system, with the application of a silicone sealant weather-seal between the unsupported edges of adjacent glass lites. A key
How are glazing panels attached to glass frames?
These methods glazing panel construction will be discussed in the following sections. In this approach, compression stresses are applied to fix metal panels or glass units into the glazing pocket of the frames. The necessary compression force can be obtained using rubber gaskets and occasionally structural tapes.
What to do if Butt glazed glass catches fingers?
Open narrow joints between butt‐glazed glass panels may catch or pinch fingers. The best preventative is to avoid open joints by filling them with silicone. An alternative is to install permanent clamps approximately every four feet to couple the adjoining panels together to prevent relative movement
