What is CWDM in optical fiber communication?
Dense wavelength division multiplexing (DWDM) refers originally to optical signals multiplexed within the 1550 nm band so as to leverage the capabilities (and cost) of erbium doped fiber amplifiers (EDFAs), which are effective for wavelengths between approximately 1525–1565 nm (C band), or 1570–1610 nm (L band).
What is a CWDM mux?
CWDM MUX/DEMUX (Coarse Wavelength Division Multiplexer/Demultiplexer) is a flexible, low-cost solution that enables the expansion of existing fiber capacity. CWDM multiplexer is for combining signals together, while demultiplexer is for splitting signals apart.
What are the types of WDM?
There are two main types of technology for wavelength division multiplexing (WDM): coarse (CWDM) and dense (DWDM). They both use multiple wavelengths of light on a single fiber, but differ in their spacing of the wavelengths, number of channels and ability to amplify the multiplexed signals.
What is the applications of CWDM systems?
CWDM filters can be specified for unidirectional transmission on two-fiber networks or for bidirectional transmission on single-fiber networks. The latter option has the advantages of lower first-in cost for leased-fiber applications and reduced fiber count for fiber exhaust applications.
Who uses DWDM?
Who uses Cisco DWDM?
| Company | Website | Company Size |
|---|---|---|
| QA Limited | qa.com | 1000-5000 |
| CONFIDENTIAL RECORDS, INC. | confidentialrecordsinc.com | 1-10 |
| Lorven Technologies | lorventech.com | 50-200 |
How many channels are supported by CWDM?
18

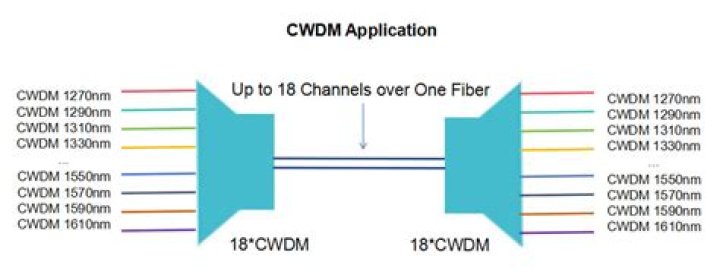

CWDM supports up to 18 wavelength channels transmitted through a fiber at the same time. To achieve this, the different wavelengths of each channel are 20nm apart. DWDM, supports up to 80 simultaneous wavelength channels, with each of the channels only 0.8nm apart.
What is a DWDM in networking?
Dense Wavelength Division Multiplexing (DWDM) is an optical multiplexing technology used to increase bandwidth over existing fiber networks. DWDM works by combining and transmitting multiple signals simultaneously at different wavelengths on the same fiber.
What is DWDM stand for?
What dies WDM mean?
wavelength division multiplexing
WDM stands for wavelength division multiplexing, a technique used to send multiple channels of data over the same cable in fiber-optic transmission. Fiber-optic cables transmit data via pulses of light, which contain a range of wavelengths or colors. With WDM, a single fiber strand may carry up to 80 channels of data.
How does DWDM work?
DWDM works by combining and transmitting multiple signals simultaneously at different wavelengths on the same fiber. The technology creates multiple virtual fibers, thus multiplying the capacity of the physical medium.
