What is FPGA simulation?
Simulation requires a form of input stimulus and then FPGA simulator software can determine the corresponding outputs. There are two ways to create input stimulus: Using an interactive waveform editor (easy). Using a testbench (a bit harder).
How do you simulate an FPGA?
Simulate an FPGA VI
- Open an existing LabVIEW project that contains an FPGA target; see Create a new FPGA project.
- Right-click the “FPGA Target”, choose “Select Execution Mode”, and then “Simulation (Simulated I/O)”; confirm that the word “Simulation” appears in the FPGA Target label.
- Run the VI as you normally would.
What is HDL simulator?
HDL simulators are software packages that simulate expressions written in one of the hardware description languages, such as VHDL, Verilog, SystemVerilog. This page is intended to list current and historical HDL simulators, accelerators, emulators, etc.

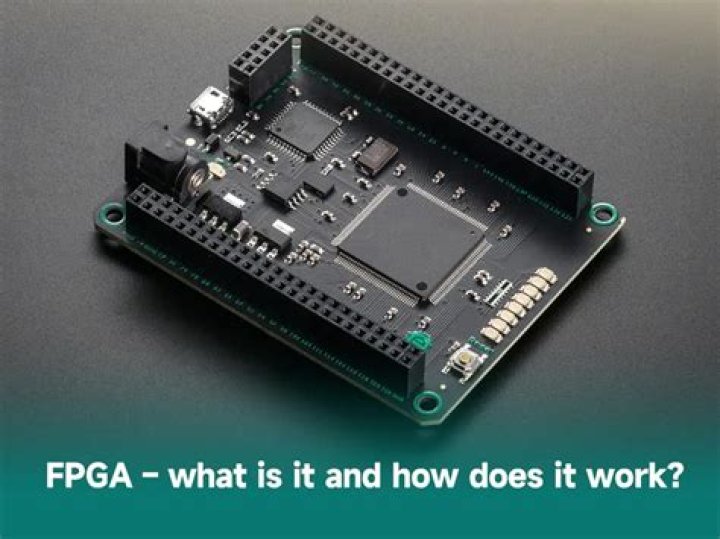

What is an FPGA device?
Field Programmable Gate Arrays (FPGAs) are semiconductor devices that are based around a matrix of configurable logic blocks (CLBs) connected via programmable interconnects. FPGAs can be reprogrammed to desired application or functionality requirements after manufacturing.
What is RTL simulator?
RTL is used in the logic design phase of the integrated circuit design cycle. An RTL description is usually converted to a gate-level description of the circuit by a logic synthesis tool. Logic simulation tools may use a design’s RTL description to verify its correctness.
Is VHDL outdated?
VHDL is Still Being Used by Avionics Companies as they Target their Designs(Usually Low Complex) into FPGAs and CLPDs. As there is no real need to migrate the Legacy design to OOP languages from VHDL, Since the Synthesis tool Continue to Support VHDL.
Why is VHDL used?
VHDL is generally used to write text models that describe a logic circuit. Such a model is processed by a synthesis program, only if it is part of the logic design. A simulation program is used to test the logic design using simulation models to represent the logic circuits that interface to the design.
What FPGA means?
field programmable gate array
It is an acronym for field programmable gate array.
How is FPGA different from microcontroller?
One of the main differences between a microcontroller and an FPGA is that an FPGA doesn’t have a fixed hardware structure, while a microcontroller does. While FPGAs include fixed logic cells, these, along with the interconnects, can be programmed in parallel by using HDL coding language.
