What is multicast configuration?
To have multicast routing in a working configuration, you must enter each interface and configure the PIM on those interfaces. To enable PIM on an interface, you use the ip pim command, which accepts either a dense-mode or sparse-mode option.
How do I set up a multicast group?
Enabling multicast on an IP address
- To check if multicast is enabled already on an IP address use the “ifconfig” command. # ifconfig eth0 | grep -i multi UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1.
- To disable multicast on a spcific ip/interface:
- To enable multicast on a specific ip/interface :
WHAT IS group in multicast?
A multicast group is defined by an IP address and a port number. Once a host has group membership, the host will receive any data packets that are sent to that group defined by an IP address/port number.
How do multicast groups work?

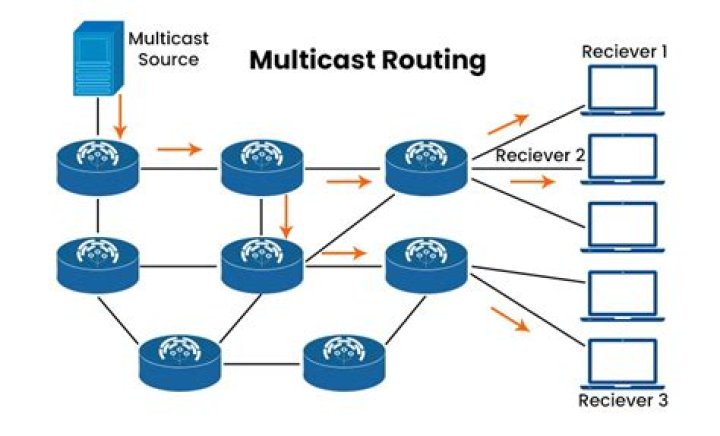

Using multicast, a source can send a single copy of data to a single multicast address, which is then distributed to an entire group of recipients. A multicast group identifies a set of recipients that are interested in a particular data stream, and is represented by an IP address from a well-defined range.
What protocols use multicast?
Multicast protocols such as UDP/IP and RTP/IP are used to broadcast data to any number of receiving devices. Unlike unicast TCP data, if a packet is not received, there is no mechanism or attempt to verify that and resend the packet. Multicast is widely used for video and audio data.
What port does multicast use?
UDP port 1900
Viewing Multicast Packets On a typical home network there are a variety of protocols that use multicast. The SSDP (Simple Service Discovery Protocol) uses multicast address 239.255. 255.250 on UDP port 1900.
What is UDP multicasting?
IP multicast is a technique for one-to-many communication over an IP network. The most common transport layer protocol to use multicast addressing is User Datagram Protocol (UDP). By its nature, UDP is not reliable—messages may be lost or delivered out of order.
How are multicast groups managed?
Multicast group management in IPv4 is done through Internet Group Management Protocol (IGMP). It is now called Multicast Listener Discovery (MLD), and is defined in RFC 2710. All MLD messages are sent with a link-local IPv6 source address and a hop limit of one to make sure they remain in the local network.
Is multicast UDP or TCP?
Unicast uses TCP (Transmission Control Protocol) for communications while Multicast uses UDP (User Datagram Protocol). TCP, as you remember, is an acknowledged protocol. You get a message indicating that your message was received.
Does multicast use TCP or UDP?
User Datagram Protocol
Unicast uses TCP (Transmission Control Protocol) for communications while Multicast uses UDP (User Datagram Protocol). TCP, as you remember, is an acknowledged protocol.
