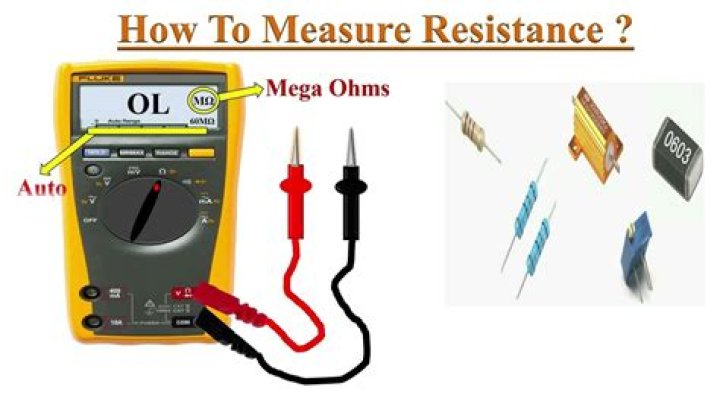

What is resistance measurement with multimeter?
The resistance measurement displayed by a digital multimeter is the total resistance through all possible paths between the test lead probes. Caution is required when measuring resistance across a component that is part of a circuit.
What is the principle of multimeter?
Most multimeters inherently measure voltage, and pass a current to be measured through a shunt resistance, measuring the voltage developed across it. The voltage drop is known as the burden voltage, specified in volts per ampere.
What is resistance measurement measured in?
Ohm
The Ohm (Ω) is a unit of electrical resistance equal to that of a conductor in which a current of one ampere is produced by a potential of one volt across its terminals. Ohm’s law, named after its discoverer the German physicist Georg Ohm, is one of the most important, basic laws of electricity.
What is the correct procedure for measuring resistance?
Here are the steps for measuring resistance in the simple circuit:
- Remove the battery.
- Turn the meter selector dial to one of the resistance settings.
- If you’re using an analog meter, calibrate it.
- Touch the meter leads to the two points in the circuit for which you wish to measure resistance.
How does a multimeter measure continuity?
The multimeter tests continuity by sending a little current through one probe, and checking whether the other probe receives it. If the probes are connected—either by a continuous circuit, or by touching each other directly—the test current flows through.
How does multimeter measure frequency?
A digital multimeter that can measure frequency has a peak-detection circuit. The meter measures the time between the two consecutive crests (peak of waveform) using the peak-detection circuit. it detects the peak of the input waveform and starts the timer.
What does a reading of 0 Ohms mean?
Resistance, symbolized by the (Ω) symbol and measured in Ohms, is a measurement of how well a current can travel through a circuit or a given path. A circuit with no resistance (0) would indicate a complete circuit, or one that has no short.
What is the difference between continuity and resistance?
Think of it this way: Continuity is a binary version of resistance. If the resistance of the thing we’re testing—the wire we want to make sure isn’t broken, the connection we want to be certain actually goes to ground, the switch we want to know works—is low (like less than 1 ohm), we say that it has continuity.
