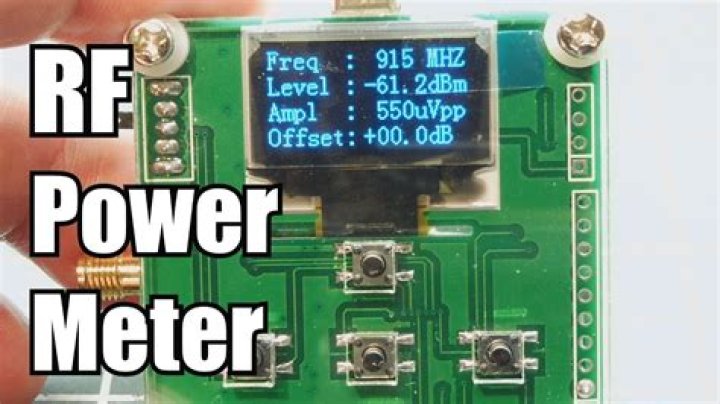

What is RF watt meter?
RF power meters measure the strength of radio frequency signals in dBm or watts. They are also referred to as RF wattmeters. They convert analog signals to digital indicators with four digits representing energy in watts, milliwatts, microwatts, or decibel milliwatts (dBm).
What is an RF power sensor?
Measures the power of continuous wave signals, ranging from single-tone and multitoned sources to wideband, complex digital waveforms. RF Power Sensor Devices feature a wide dynamic range and high measurement accuracy packaged in a size similar to a typical power head.
What is RF power output?
In radio transmission, transmitter power output (TPO) is the actual amount of power (in watts) of radio frequency (RF) energy that a transmitter produces at its output. The radio antenna’s design “focuses” the signal toward the horizon, creating gain and increasing the ERP.
What is RF power supply?
Radio frequency (RF) refers to high-frequency electromagnetic fields. An RF power source, commonly used in the communication industry, is a system that provides these fields. These fields resonate in an enclosed device called a cavity, an electromagnetically resonant structure.
How is RF output power calculated?
Absolute RF Power Measurement using Simple Techniques
- If an accurate 50Ω dummy load is available in the shack, we can measure RF power by measuring the RF voltage developed across the load.
- The peak-to-peak voltage is 2.828 times the root-mean-square (rms) voltage.
- Average power Pav = (Vrms)2 ÷ R.
How do you read a watt meter?
Read your power meter from right to left and write down the numbers that the each arrow points to.
- If the arrow on a dial is in between two numbers, record the lower number.
- If the arrow on the dial is exactly on a number, record that number [source: Nova Scotia Power].
What is digital wattmeter?
Digital wattmeters measure current and voltage electronically thousands of times a second, multiplying the results in a computer chip to determine watts. The computer can also perform statistics such as peak, average, low watts and kilowatt-hours consumed. They can monitor the power line for voltage surges and outages.
What sensors are used for power measurements?
Inductive sensors utilize a coil of wire that goes around the power carrying wire to measure voltage current phase and ultimately wattage. Direct measurement sensors are in line with the power carrying wires and convert it to a proportional corresponding signal for measurement or display.
