What is serial DCE and DTE cable?

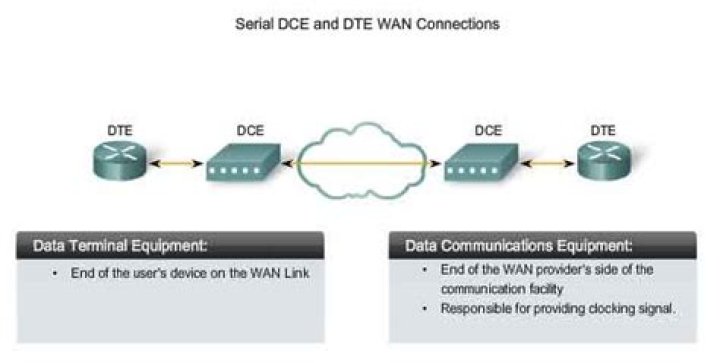

There are two types of devices that can communicate over a serial interface: DCE and DTE. A DCE provides a physical connection to a network and forwards traffic. A DTE connects to a network through a DCE device. Typically, a DTE device is connected to a DCE device (or vice versa) rather than another DTE device.
What kind of cable allows for a serial connection to a Cisco networking device?
Console cables — also known as Cisco cables, rollover cables and management cables — are designed for a specific purpose. They connect Cisco networking devices to terminals or PCs for configuration. Typically, the Cisco end will connect via RJ45, and the terminal end will conclude in a serial connection.
How do I connect my Cisco router to a serial cable?
Access Router Command Line Interface
- Under Category, choose Session.
- Under Connection type, choose Serial.
- In the Serial line, enter the COM port on your laptop that is connected to the console port on your router, using the console cable.
- Click Open.
How do I know if my Cisco router is DTE or DCE?
If you can see the DTE/DCE cable, you can tell by looking which router has the DCE interface connected to it – the letters “DTE” or “DCE” will either be molded into the connector itself, or if it’s an older cable there should be a little piece of tape on the cable that tells you what the interface type is.
How do I connect my router to serial DCE?
The one with the Clock is the DCE. You might have to add the WIC module on the router depending which you take! As was stated, go to connections in the bottom left, pick the DCE cable (the red cable before last) and drag the clock side to whichever router you want to be the DCE.
What is a serial DCE cable used for?
A straight-through serial cable is the most common type of serial cable, used to connect a Data Terminal Equipment (DTE) device (for example, a computer) to a Data Communications Equipment (DCE) device (for example, a modem).
What is DTE cable?
DTE stands for Data Terminal Equipment, and DCE stands for Data Communications Equipment. Therefore, a straight through “one to one” cable is all that is necessary between a modem and a standard DTE serial port.
What command enables you to verify whether a DCE or DTE serial cable is attached to the serial interface of the router?
The show controllers serial 0 command will show you whether either a DTE or DCE cable is connected to the interface. If it is a DCE connection, you need to add clocking with the clock rate command.
How do I enable DCE on my Cisco router?
To configure the router to be DCE:
- In configuration mode, go to the [edit interfaces interface-name ] hierarchy level: [edit] [email protected]# edit interfaces interface-name.
- Configure the dce option to respond to Frame Relay status enquiry messages. [edit interfaces interface-name ] [email protected]# set dce.
How do I connect two Cisco routers via serial?
There are many ways to connect two routers back-to-back. 1: Connect through Ethernet ports: use a crossover cable to directly connect the routers together through two Ethernet ports. 2: Connect through serial ports: use a DCE/DTE cable to connect the serial ports.
