What is the difference between frequency response and impulse response?

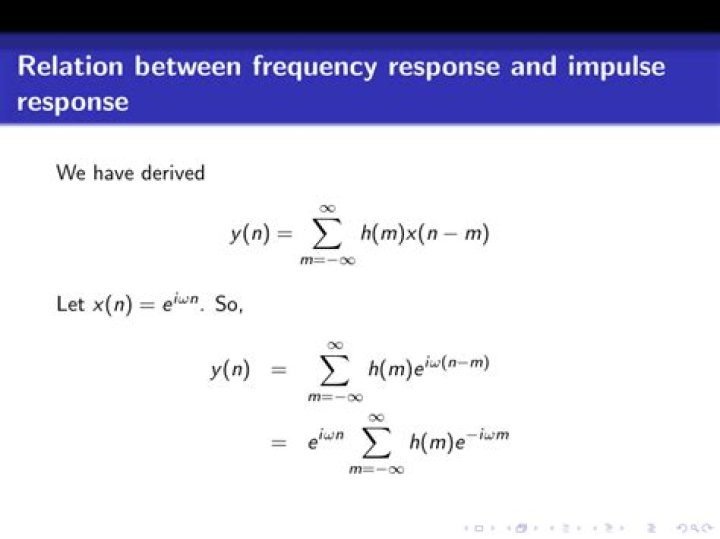

The relationship between the impulse response and the frequency response is one of the foundations of signal processing: A system’s frequency response is the Fourier Transform of its impulse response. In the frequency domain, the input spectrum is multiplied by the frequency response, resulting in the output spectrum.
What is the difference between an impulse function and an impulse response?
In signal processing, the impulse response, or impulse response function (IRF), of a dynamic system is its output when presented with a brief input signal, called an impulse. More generally, an impulse response is the reaction of any dynamic system in response to some external change.
What do mean by impulse response?
An impulse response refers to the reaction of any dynamic system in response to some external change. The impulse response function of VAR analyzes dynamic effects of the system when the model received the impulse or shock.
How do you test impulse response?
Given the system equation, you can find the impulse response just by feeding x[n] = δ[n] into the system. If the system is linear and time-invariant (terms we’ll define later), then you can use the impulse response to find the output for any input, using a method called convolution that we’ll learn in two weeks.
Why impulse response is used in system analysis?
The impulse response of a system is important because the response of a system to any arbitrary input can calculated from the system impulse response using a convolution integral.
What is meant by the frequency response of a system?
Wikipedia Definition. In electronics, frequency response is the quantitative measure of the output spectrum of a system or device in response to a stimulus, and is used to characterize the dynamics of the system. It is a measure of magnitude and phase of the output as a function of frequency, in comparison to the input …
What is the frequency response of a system?
– Frequency response is the steady-state response of a system to a sinusoidal input. In frequency-response methods, we vary the frequency of the input signal over a certain range and study the resulting response.
What is the frequency of impulse signal?
The true impulse has a much different magnitude spectrum. It is a constant value across all frequencies between 0 and fs/2 Hz. Its phase spectrum is also a constant. As shown in one of the problems, the phase angle is 0.0 degree over the frequency range of 0 to fs/2 Hz.
Why is frequency response needed?
First, for an audio system, the objective may be to reproduce the input signal with no distortion. That would require a uniform (flat) magnitude of response up to the bandwidth limitation of the system, with the signal delayed by precisely the same amount of time at all frequencies.
What is frequency response analysis?
Frequency response analysis is the technique whereby a sinusoidal test signal is used to measure points on the frequency response of a transfer function or impedance function. The magnitude and phase of the output y(t) are in fact related to the transfer function G(s) at the frequency (ω rad/s) of the input sinusoid.
