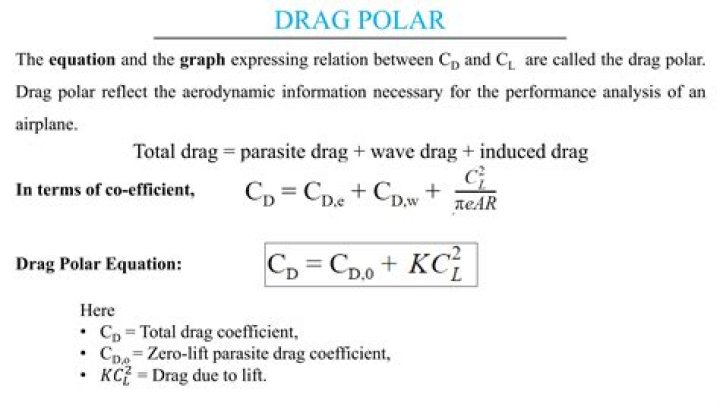

What is the drag polar equation?
The drag curve or drag polar is the relationship between the drag on an aircraft and other variables, such as lift, the coefficient of lift, angle-of-attack or speed. It may be described by an equation or displayed as a graph (sometimes called a “polar plot”).
What is aerodynamic drag coefficient?
The aerodynamic drag coefficient is a measure of the effectiveness of a streamline aerodynamic body shape in reducing the air resistance to the forward motion of a vehicle.
How do you find the drag coefficient of a ball?
For larger objects (such as a baseball) moving at a velocity v in air, the drag force is given by FD=12CρAv2 F D = 1 2 C ρ A v 2 , where C is the drag coefficient (typical values are given in Table 1), A is the area of the object facing the fluid, and ρ is the fluid density.
Why does drag coefficient decrease with Reynolds number?
The drag coefficient decreases at low Reynolds numbers because the flow is in a regime called creeping flow. That is, the inertial forces are negligible.
How do you calculate drag force from drag coefficient?
The drag coefficient Cd is equal to the drag D divided by the quantity: density r times half the velocity V squared times the reference area A. The drag coefficient then expresses the ratio of the drag force to the force produced by the dynamic pressure times the area.
How is induced drag coefficient calculated?
The induced drag coefficient Cdi is equal to the square of the lift coefficient Cl divided by the quantity: pi(3.14159) times the aspect ratio AR times an efficiency factor e. The aspect ratio is the square of the span s divided by the wing area A.
What is drag coefficient of a ball?
Drag across a golf ball can affect distance traveled when hitting a ball. An average golf ball will have a drag coefficient of, 0.24 < CD < 0.7, in a Reynolds number range of 30,000 < ReD < 108,000. This paper investigates the effect of dimple patterns on the boundary layer around a ball.
How do you find the coefficient of drag in fluent?
to calculate the drag coefficient i push: solve/monitors/force/drag coefficient….. then i set other values: viscosity, velocity, density of fluid as i wrote upforward. i put 90 nodes around the circonference of the cylinder, and 25 along to the length of the cylinder.
What is the relationship between drag coefficient and Reynolds number?
Note that the drag coefficient decreases with the Reynolds number, and it becomes almost a constant (CD = 0.4) for a Reynolds number between 103 and 2×105. As the Reynolds number increases (Re > 2×105), the boundary layer becomes thinner in the front of the sphere and begins its transition to turbulent.
What affects coefficient of drag?
Some factors that impact the magnitude of air resistance (drag) include the size and shape of the object, the velocity of the object and the air, and other properties of the air such as its viscosity, mass, and compressibility.
