What is the formula for capacitance of a transmission line?

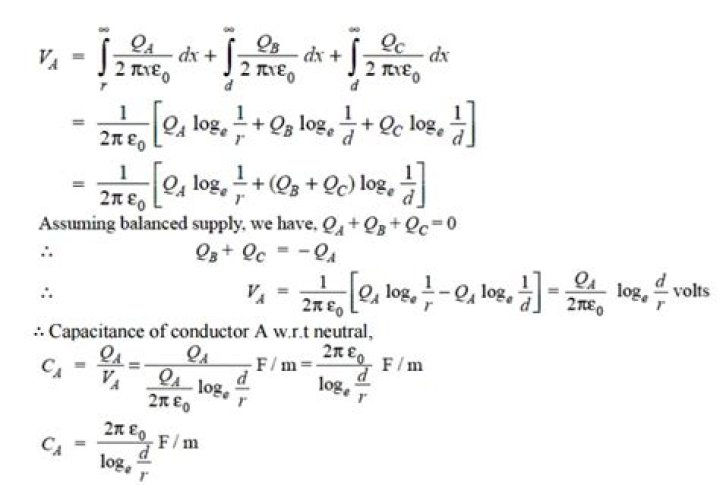

Capacitance of two-wire line Cab is referred to as line-to-line-capacitance. If the two conductors a and b are oppositely charged, and the potential difference between them is zero, then the potential of each conductor is given by 1/2 Vab. Capacitance Cn is called the capacitance to neutral or capacitance to ground.
What is capacitance effect in transmission line?
Capacitance in a transmission line results due to the potential difference between the conductors. The conductors get charged in the same way as the parallel plates of a capacitor. Capacitance between two parallel conductors depends on the size and the spacing between the conductors.
What happens if the capacitance of a transmission line is very high?
ADVERTISEMENTS: If the capacitance of an overhead line is high, the line draws more charging current, which compensates or cancels the lagging component (reactive component) of load current (under normal load conditions the load is inductive one). Hence the resultant current flowing in the line is reduced.
How is PCB trace capacitance calculated?
Trace capacitance calculation The capacitance of a parallel plate capacitor is given by C= (kA/11.3d)pF. Where C is capacitance, A is the plate area in cm2, k is the relative dielectric constant of board material, and d is the distance between the plates in cm.
How do you calculate transmission line efficiency?
Efficiency of Transmission Line Transmission efficiency is defined as the ration of receiving end power PR to the sending end power PS and it is expressed in percentage value. cosθs is the sending end power factor. cosθR is the receiving end power factor.
What is Corona in transmission lines?
DEFINITION: The ionization of air surrounding the high voltage transmission lines causing the conductors to glow, producing a hissing noise, is called Corona Discharge or Corona Effect.
How can you minimize the effect of transmission line capacitance?
Ferranti effect can be reduced by installing shunt compensation devices at receiving end. The compensation device is a shunt reactor which is connected in parallel with the transmission line. It reduces the voltage level by absorbing the reactive power. Running the transmission line with higher load.
In which transmission line capacitance effect is negligible?
Short transmission line = Length(L) < 80 km and product of length(L) and frequency(f) L.f < 4000 For short transmission line charging current and leakage currents are very small. So that capacitance effect and conductance are negligible only for short transmission lines.
How do you reduce capacitance of a line?
For a cable capacitance can be minimized by either:
- Increasing the insulation wall thickness;
- Decreasing the conductor diameter; or.
- Using insulation with a lower dielectric constant or a precisely formed foamed dielectric that leaves voids to mimic an air dielectric.
How do you calculate transmission line parameters?
The parameters computed are the resistance R, reactance X, susceptance B, and conductance G. These values are computed as distributed (per unit of distance), lumped or total (for a specific line distance), and in per-unit.
