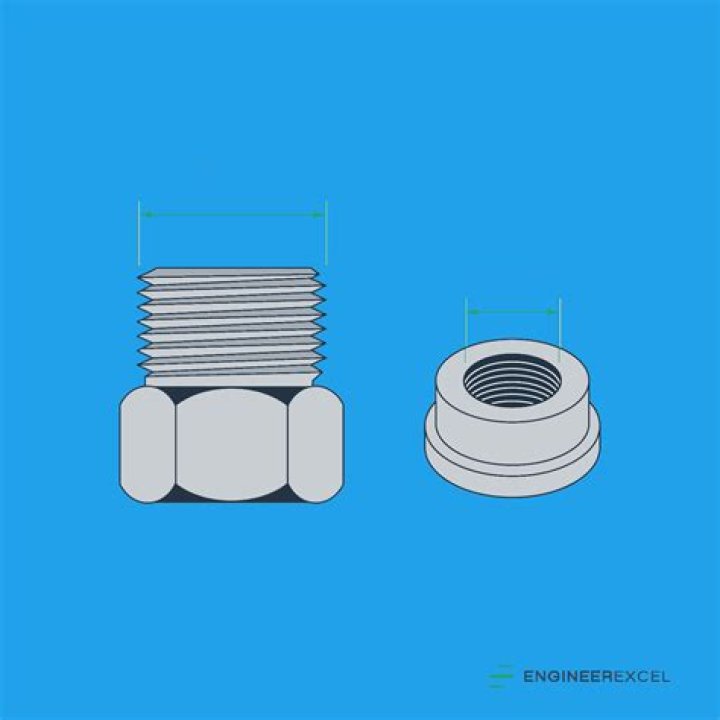

What is the inside diameter of 1/4 NPT?
NPT and NPTF pipe threads – dimensions according ANSI/ASME B1. 20.1/3
| NPT – American Standard Pipe Thread Taper 1) | ||
|---|---|---|
| Pipe Size (inches) | TPI | Nominal Outside Diameter Pipe OD (inches) |
| 1/16″ | 27 | 0.313 |
| 1/8″ | 27 | 0.405 |
| 1/4″ | 18 | 0.540 |
Can you use NPT with NPT?
MIP Male Iron Pipe (interchangeable with NPT) Male Iron Pipe, a threaded pipe or fitting connection to an FIP or FPT fitting.
What are NPT sizes?
Commonly used sizes are 1⁄8, 1⁄4, 3⁄8, 1⁄2, 3⁄4, 1, 11⁄4, 11⁄2, 2, 21⁄2, 3, 4, 5, and 6 inch, as pipe and fittings by most U.S. suppliers. Sizes smaller than 1⁄8 inch are occasionally used for compressed air, while sizes larger than 6 inches are often joined by other methods.
What size hole do I drill for a 1/4 NPT tap?
7/16″
NPT Tap Drill Chart
| Tap Size | Drill Size | Tap and Drill Set |
|---|---|---|
| 1/4″ NPT Tap | 7/16″ Drill Bit | 1/4″ NPT Tap and Drill Set |
| 3/8″ NPT Tap | 37/64″ Drill Bit | 3/8″ NPT Tap and Drill Set |
| 1/2″ NPT Tap | 23/32″ Drill Bit | 1/2″ NPT Tap and Drill Set |
| 3/4″ NPT Tap | 59/64″ Drill Bit | 3/4″ NPT Tap and Drill Set |
What is a 1 NPT fitting?
NPT stands for National Pipe Tapered threads, also known as ANSI/ASME B1. 20.1 pipe threads. It is a U.S. standard for measuring tapered threads on threaded pipes and fittings. Sometimes referred to as MPT (male pipe threads), NPT threads are not interchangeable with NPS (National Pipe Straight) threads.
What is the difference between NPT and MNPT?
NPT stands for National Pipe Thread and is an American standard thread. It may also be reffered to as MPT , MNPT or NPT (M) for male external threads and FPT, FNPT or NPT(F) for female interal threads. Both threads have the same pitch, angle (60 degrees) and shape (flat peaks and valleys).
What is the difference between NPT and MIP?
As previously mentioned, NPT indicates the defined standard from ANSI – but many people use MPT/MIP and FPT/FIP interchangeably. MPT stands for Male Pipe Thread and MIP stands for Male Iron Pipe which both indicate a male fitting with NPT threads.
What is a NPT fitting?
NPT (or National Pipe Taper) is a U.S. standard for tapered threads widely used on pipes and fittings for over 100 years. NPT connections rely on thread deformation- a metal to metal sealing design where the threads of the connectors themselves form together.
