What is the most common method of protein crystallization?
Vapor diffusion

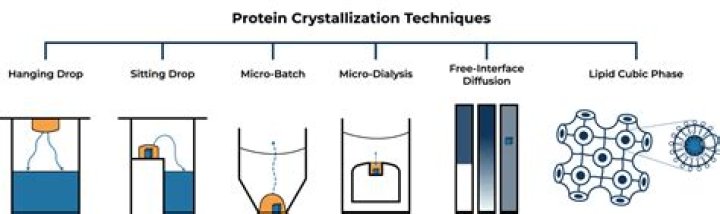

Vapor diffusion is the most commonly employed method of protein crystallization. In this method, droplets containing purified protein, buffer, and precipitant are allowed to equilibrate with a larger reservoir containing similar buffers and precipitants in higher concentrations.
Which techniques are used to determine membrane protein structure?
X-ray crystallography, nuclear magnetic resonance spectroscopy (NMR), and cryogenic electron microscopy (cryo-EM) are the main techniques that have been used to determine the 3D structure of transmembrane proteins.
How do you crystallize proteins?
The most widely used method of crystallization is vapor diffusion. The protein solution is either a hanging or sitting drop that equilibrates against a reservoir containing crystallizing agents at either higher or lower concentrations than in the drop.
What are the technical challenges to crystallizing a membrane protein?
They are also often flexible and unstable. This leads to challenges at all levels, including expression, solubilisation, purification, crystallisation, data collection and structure solution.
Why is it difficult to crystallize membrane proteins?
Membrane Proteins. Membrane proteins, which have predominantly hydrophobic surfaces, are hard to crystallize because they tend to aggregate in aqueous solutions. Proteins which have post-translational modifications are also hard to crystallize because the PTMs are usually not uniform among the protein molecules.
What is the principle of protein crystallization?
The principle of protein crystallization. In a vapor diffusion experiment (A) equal volumes of precipitant and protein are present in the drop. Water will diffuse out and both the precipitant and protein concentration will be doubled until equilibrium is achieved between the drop and the reservoir solution.
What is Cryo EM structure?
The technique involves flash-freezing solutions of proteins or other biomolecules and then bombarding them with electrons to produce microscope images of individual molecules. These are used to reconstruct the 3D shape, or structure, of the molecule.
How do you crystallize a molecule?
To crystallize an impure, solid compound, add just enough hot solvent to it to completely dissolve it. The flask then contains a hot solution, in which solute molecules – both the desired compound and impurities – move freely among the hot solvent molecules.
How do you isolate membrane bound proteins?
A detergent containing buffer is used to extract membrane proteins from the lipid bilayer. Different types of detergents, such as ionic detergents, non-ionic detergents, bile salts detergents, and zwitterionic detergents, are available.
How does pH affect protein crystallization?
The pH value of a solution is of great importance in protein crystallization, as it can modulate the charges on the protein molecules (Bernardo et al., 2004 ▶), thereby affecting the electrostatic interactions between the molecules and further influencing molecular packing during crystallization (Neal et al., 1999 ▶).
