What is the purpose of port timing diagram?

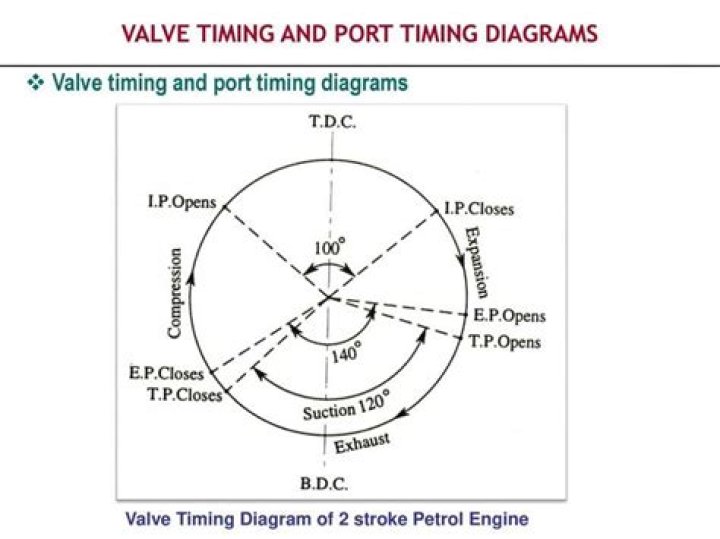

Since the one cycle is completed in one revolution of the crank, the sequence of operation of the ports can be represented in a circle (360°). This representation is known as a port timing diagram. The port timing diagram gives an idea about when a phase of the two-stroke cycle takes place.
Why ports are used in 2 stroke engines?
Valves or ports control the timing of air flow to the cylinder. In two stroke engines—discussed elsewhere—ports in the cylinder liner that are alternately covered and uncovered by the piston are commonly used.
Is there timing on a 2 stroke?
Timing is set on a 2 stroke by adjusting the stator. You need a dial indicator in the spark plug hole. Set TDC to 0 on the dial indicator, then turn the engine over counter clockwise until the timing marks line up. The reading on the dial indicator will tell you the timing.
Do 2 strokes have timing?
Why Ignition Timing Is So Important for 2-Stroke Engines The cause of this unique problem with 2-stroke engines is the ignition timing. This problem can only happen on a 2-stroke because there are no valves to be operated in a set sequence, as in a 4-stroke engine.
What do you mean by valve timing diagram?
A valve timing diagram is a graphical representation of the opening and closing of the intake and exhaust valve of the engine, The opening and closing of the valves of the engine depend upon the movement of piston from TDC to BDC, This relation between piston and valves is controlled by setting a graphical …
What is difference between port and valve?
A valve in an engine is operated mechanically , whereas a port is just an opening which is opened and closed by a piston . A four stroke engine uses valves and a two stroke engine uses ports. Ports are the open spaces from where fuels intake or exhausts in 2 stroke engine.
How does the 2 stroke cycle work?
Two-stroke engines work by combining more functions into one piston-movement; during the upwards movement of the piston (compressing the air/fuel/oil mixture) in the combustion chamber, underneath the piston a fresh mixture of air/fuel/oil is drawn in the hermetically closed crankcase.
What is the difference between valves and ports?
Originally Answered: what is the difference between a valve and a port? Ports are simple opening for facilitating inlet or outlet of air-fuel mixture and exhaust gases. While valves are the combination of ports and mechanisms for its opening and closing often connected to a rocker arm and timing cam shaft in engines.
