What is the symbol of 3 gang switch?

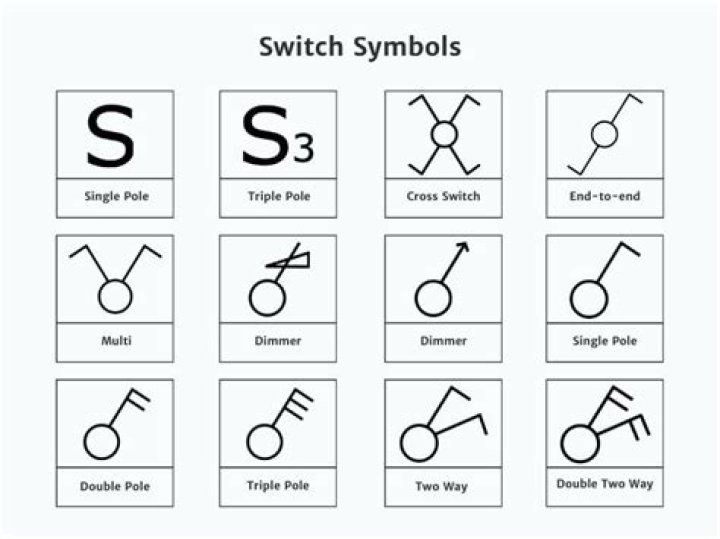

The switch symbol typically refers to a single pole switch which is most commonly wall mounted and found in all areas of the home. the 3-way switch symbol is used to describe a pair of light switches which are found in areas such as a hallway or stairway where a 3-way switch is located at opposite ends.
What is 3 gang 1 way switch?
This format of light switch has three discreet switches on a single face plate. Basically this is three Single gang 1 way switches on a single face plate. The only place you would use such a beast is if you had three lights (or sets of lights) in a single room each controlled by one of the single switches.
What is the symbols of switch?
Electronic Switch Symbols
| Name | Description |
|---|---|
| Pushbutton Switch (N.C) | Momentary switch – normally closed |
| DIP Switch | DIP switch is used for onboard configuration |
| SPST Relay | Relay open / close connection by an electromagnet |
| SPDT Relay |
What is a 3 Gang 3 way switch?
A 3 gang light switch has three separate controls on a single faceplate to operate different light circuits. Also referred to as triple light switches, they are often installed in rooms which have three sets of lights and provides a convenient option to control each individual as required.
What is a 3-way switch?
A 3-way switch is larger than a single pole switch and has three screw terminals for wiring connections, plus a ground. Two of these take traveler wires that go from one switch to the other. For the third terminal, one switch is connected to the hot supply wire while the other switch is joined to the light.
What is a 3 Gang 3-way switch?
How do I wire a 3 way switch?
- Connect a black, or hot, wire from each of the three fixtures to the top screw on the right side of each switch. Tighten each screw.
- Connect the black wire from the power supply to all three of the black pigtails.
- Connect each black pigtail to the bottom screw on each of the three switches.
