What is the symbol rate of 64 QAM?
Reliable Carrier Lock
| Digital Modulation Format | Minimum Result Length (0 Hz frequency offset) | Maximum frequency offset (Result Length = 1000 symbols) |
|---|---|---|
| 16-QAM | 50 symbols | 4.8% symbol rate |
| 32-QAM | 75 symbols | 3.15% symbol rate |
| 64-QAM | 150 symbols | 4.65% symbol rate |
| 128-QAM | 250 symbols | 0.3% symbol rate |
What is symbol in QAM?
The term “symbol” means some unique combination of phase and amplitude. The term M as in M-QAM indicates how many bits are transmitted per time interval or symbol for each unique amplitude/phase combination. The simplest form of QAM is 2-QAM, more commonly called QPSK or quadrature phase shift keying.
How many bits is 64 QAM?
6 bits

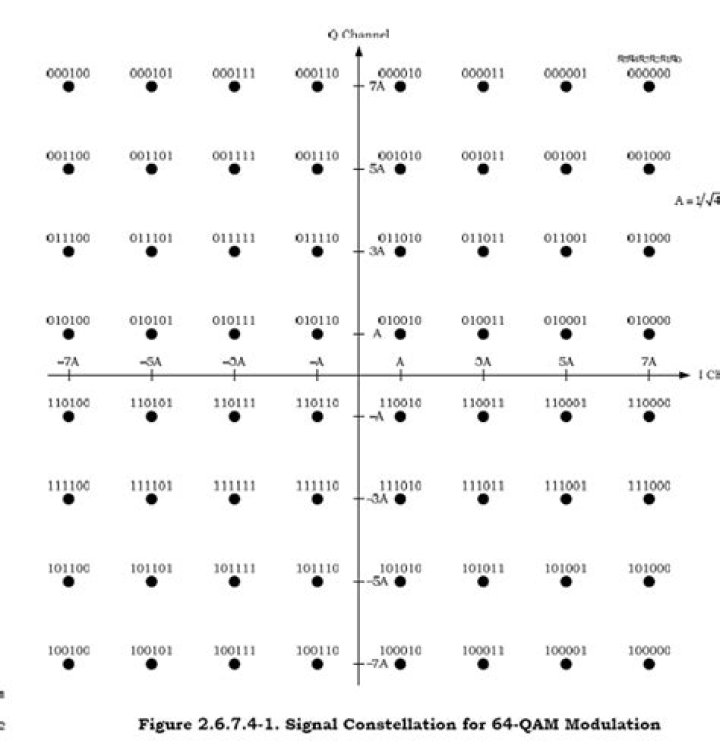

The 64 qam bits per symbol are 6 (six). In 64-QAM, each symbol is represented by 6 bits as shown in the 64-QAM constellation diagram above.
How do you find a symbol rate?
In digital television transmission the symbol rate calculation is: symbol rate in symbols per second = (Data rate in bits per second × 204) / (188 × bits per symbol)
How do I convert symbols to bits?
Please provide values below to convert character to bit [b], or vice versa….Character to Bit Conversion Table.
| Character | Bit [b] |
|---|---|
| 0.01 character | 0.08 b |
| 0.1 character | 0.8 b |
| 1 character | 8 b |
| 2 character | 16 b |
How do you calculate data using QAM?
The required bandwidth is related to bit rate and the modulation order M. It is so that the double sided bandwidth w = symbol rate= bit rate rb/ divided by the number of bit per symbol n. The number of bits per symbol is = log 2M with M is the M is the QAM modulation order.
How many characters are in a bit?
That would mean that there are between 0.03125 and 0.125 characters in a bit. There are 8 bits in a byte (normally speaking in Windows). However, if you are dealing with characters, it will depend on the charset/encoding.
