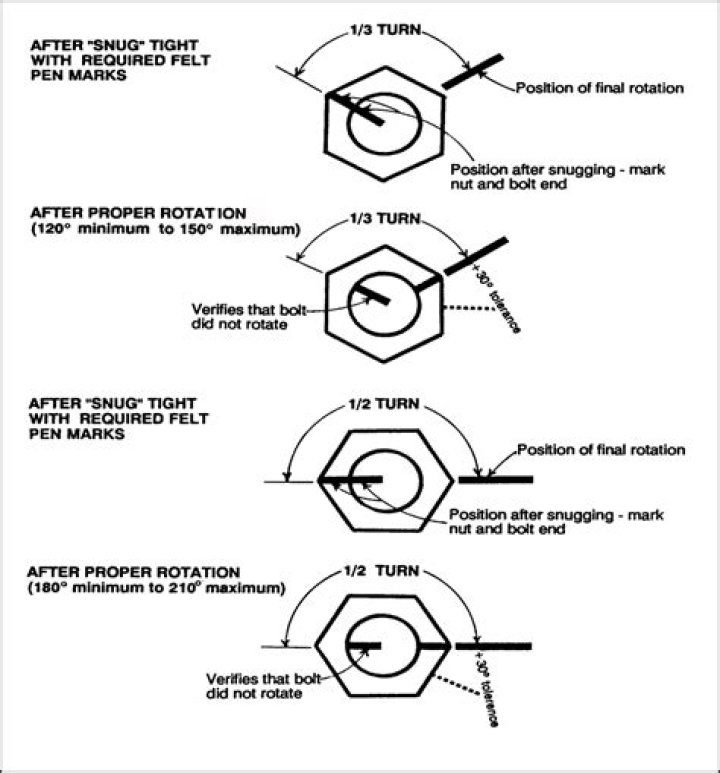

What is the turn-of-nut method?
Turn-Of-Nut is performed by rotating the nut or bolt of a fastener assembly a specific turn angle based on the fastener’s length, and diameter while restraining the unturned element from rotating.
Do you turn the nut or the bolt?
The answer depends on your application and the condition of the materials being fastened. In many situations you can apply torque to either the nut or the bolt head. Both will result in a tight connection and neither will avoid breakage more often (that occurrence can be avoided through other means).
What is part turn method?
The part-turn method of tightening first requires bolt tightening to snug tight, intended to bring all Page 2 2 plies into direct contact, followed by rotating the item to be turned (typically the nut) by a specific amount i.e. part-turn to ensure reaching the code specified minimum bolt tension.
What are the acceptable bolting methods per AISC?
There are four acceptable installation methods to obtain the pretension values for bolting: turn-of-nut method (with or without match marking), calibrated wrench method, twist-off-type tension-control bolt method and direct tension indicator method. Each of these methods is assumed to be used independent of the others.
What are turned bolts?
Turned Bolts are used to align and secure large components (reducers, rack segments, bearing housings, etc.) of movable bridges and other structures. Turned Bolts are custom made per the project and are not stocked by any manufacturer. Typical industry lead-times are 6 to 12 weeks for delivery.
Can A325 bolts be reused?
Snugged Bolt Reuse F3125 Grade A325 bolts that are snugged can usually be reused. Snugged F3125 Grade A490 bolts and galvanized Grade A325 bolts can only be considered for reuse if snugged by hand or very lightly snugged with an impact wrench.
What is bolt nut factor?
The nut factor is a grouping of the assumptions associated with torque measurement into one number. It is an empirical value that linearly models the rate at which tension is developed within a fastener when torque is applied. An empirical value requires observation and testing to ensure accuracy.
How do you tighten nut bolts?
Hold the shaft of the spanner and turn it clockwise as far as you can. If it is a ratchet spanner, turn it back anticlockwise when you can’t go any further, then turn it clockwise again to tighten it. Keep doing this until the nut is too tight to turn easily.
What is A325 bolt?
ASTM A325 Bolts ASTM A325 structural bolts are heavy hex bolts made of medium carbon steel with a flat bearing surface, washer faced, and chamfered point. They are commonly used in structural steel joints in heavy construction and available in diameters ranging from 1/2” up to 1-1/2”.
What are turned and fitted bolts?
Turned –and- fitted bolts have uniform shanks and are inserted in close tolerance drilled holes and made snug tight by box spanners. The diameter of the hole is about 1.5 to 2.0 mm larger than the bolt diameter for ease in fitting.
What are unfinished bolts where are these used?
Unfinished bolts are also called ordinary, common, rough or black bolts. There are used for light structures (purlins, bracings, etc.) under static loads. They are not recommended for connections subjected to impact load, vibrations and fatigue.
