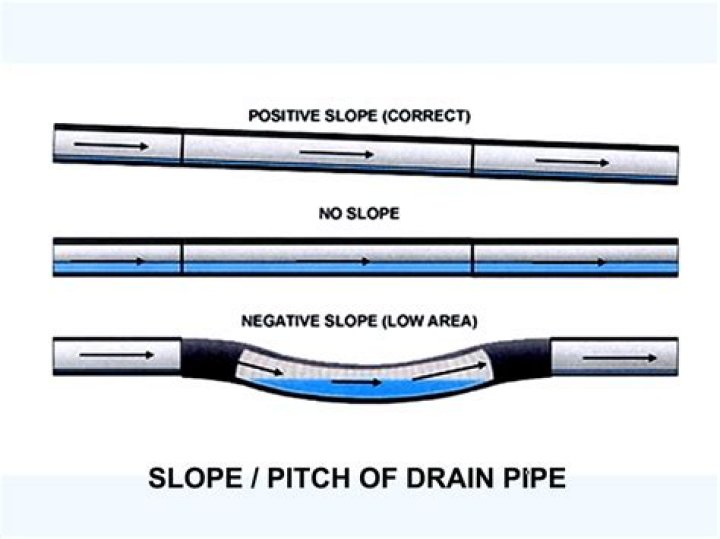

What should the slope of a sewer line be?
According to the International Plumbing Code, drainage pipes should be run with a uniform slope at the following minimum pitches: Large sewer lines require calculations to determine the proper pitch.
What is the minimum slope for PVC pipe?
For 4-inch PVC piping and a building sewer less than 50 feet long, the minimum slope is 1 inch in 8 feet, or 1/8-inch per foot, and the maximum is 1/4-inch per foot. For sewers longer than 50 feet, the slope should be 1/4-inch per foot.
How big of a drainage pipe do I Need?
Standard Horizontal Drainage Pipe Slope PIPE DIAMETER MINIMUM SLOPE 2 1/2″ or smaller 1/4″ per foot 3″ to 6″ 1/8″ per foot 8″ or larger 1/16″ per foot
What are the minimum velocities for a sewer?
All sewers shall be designed and constructed to give mean velocities, when flowing full, of not less than 2.0 feet per second, based on Manning’s formula using an “n” value of 0.013. The following are the minimum slopes which shall be provided; however, slopes greater than these are recommended. b.
What is the minimum slope of a sewer line?
Sewage lines should slope downward to the septic tank and drain field at min. 1/4″ per ft. For steep drops, a 45% slope is best.
How do you calculate the slope of a pipe?
If you want that same 20 foot pipe to slope at the maximum of 3 inches per foot, multiply 20 by 3 for a total of 60 inches of slope. Pipes with bends require a little more calculation than straight pipes. If you have a pipe that turns, you will need to calculate the slope of each section individually.
What is the minimum slope for a storm sewer?
The minimum velocity allowed in storm sewer systems is 3 ft/sec (0.9 m/sec). A flatter slope that is sufficient enough to maintain a velocity of 2 ft/sec (0.6 m/sec) will be permitted only in special cases.
What is the minimum fall for a sewer line?
Re: sewer drain line fall per foot. Author: jimmy-o (CA) Generally, minimum is 1/4″ per foot. A four inch or larger can sometimes fall at only 1/8″ per foot. Although the topic is widely debated, there is probably NO maximum fall rate.
