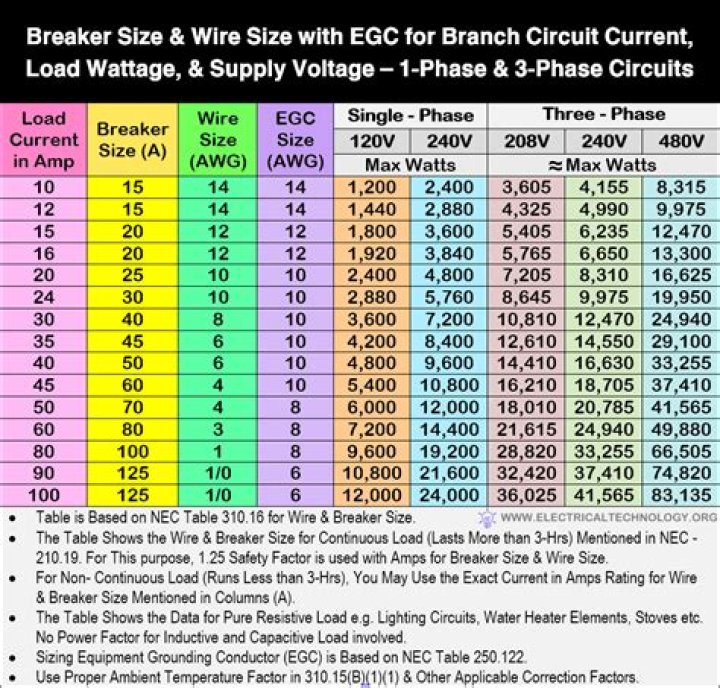

What size breaker do I need for a welder?
It’s best to size welder circuits and wiring based on input current requirements. A 50-amp circuit breaker and 6-gauge wiring is required for welders with 40 to 50-input Amps. Welders need a 40-amp breaker and 8-gauge wire to operate.
How thick can 90 Amps weld?
A stick welder of 90 amps would be able to burn 3/16 inch dai rods and might even 1/8 inch given this you could weld up to 1/4 inch mild steel if the base material was clean and rods new and dry. Anything thicker and your max amps would be too low for proper penetration and take a lot longer in time wise to accomplish.
What size breaker do I need for a 220v stick welder?
30 – 40 Amp
A circuit with a 20 Amp circuit breaker will need a minimum of 12gauge wire. For 220v welders, you will need at least 30 – 40 Amp breaker, and for smaller 115v welders, you will need at least 20 – 30 Amp breaker.
Will a welder trip a breaker?
Welders are powerful tools which use a great deal of electricity. This requires a circuit which is designed to allow a high amperage without causing damage or tripping the circuit breaker. If the welder pulls more amps from the circuit than the breaker will allow, then the breaker will trip.
What amp does a welder use?
A welder running on 208 – 230V primary requires a minimum breaker size of 30A with 50A recommend (this would be for welding at up to 180 amps). Welding at an output of 200 amps or more requires at least a 50A breaker….Buying your First Welder.
| Welding Speed | |
| MIG | Fast |
|---|---|
| Flux Cored | Fast |
| DC Stick | Slower |
| DC TIG | Slowest |
How thick metal can you weld with a 90 amp flux wire welder?
Here’s their description: “This flux welder is ideal for outdoor work since it doesn’t use an external shielding gas – the flux built into the wire shields the weld. Set-up is easy for gasless flux-cored welding on thicker steel. 120 volt flux welder allows you to weld material from 18 gauge to 1/2″ thick.”
What is a flux welder good for?
Flux-core welding offers greater penetration, which is good for working with thicker joints. It also allows the welder to travel in all directions and hold the torch in a number of directions. This makes it particularly suited to general repairs, shipbuilding, and other types of manufacturing.
Can I plug a welder into a regular outlet?
Electrical Set Up for Welding at Home Many welders recommend starting home projects with a Millermatic 141 MIG welder since it doesn’t require more than 120V and runs fine on most home electrical outlets. For a 220V welder, an electrician will have to install a plug that can handle the extra amperages it requires.
How do you stop a welder from tripping the breaker?
If your welder trips the breaker as soon as you plug it in try plugging another known-good item into that same outlet and see if it does the same. If not it may be your welder. Try it at another outlet and see if it does the same at another outlet.
How many amps does a welder pull?
A 220v welder will take about half the amperage of a similar 110v welder. 90-100 amps is fairly common, but you can find smaller (and larger) welders. An air compressor will probably take a lot less current, maybe 20-30 amps for 220v or 20-50 amps for 110v.
