What wire is needed for NEMA 14-50?
4-wire
standard NEMA 14-50 outlet (4-wire) is the way to go.
What does NEMA 14 50R mean?
14-50R = Receptical. 14-50P = Plug. A snug fit is good. It’ll probably loosen up a bit after pugged in / removed a few times.

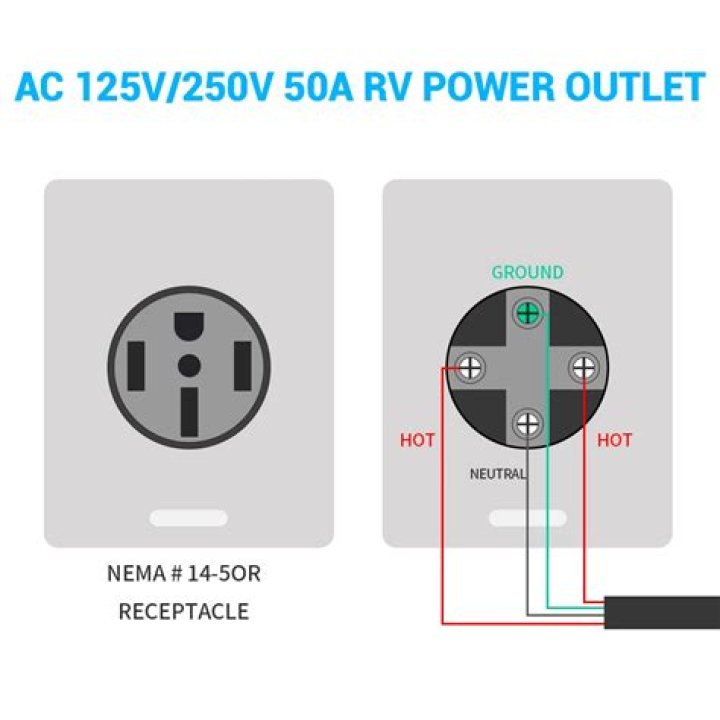

How is 50 amp RV plug wired?
A 50 amp plug has four prongs – two 120 volt hot wires, a neutral wire and a ground wire – that supply two separate 50 amp, 120 volt feeds.
What is a 14 50r outlet used for?
NEMA 14-50 (50A plug). This is commonly used for electric ovens and is often found in RV parks and campgrounds.
What size breaker do I need for a 14-50 outlet?
50 amp
The recommended home charging installation option for Tesla vehicles is a 240 volt NEMA 14-50 outlet. This outlet is commonly used for electric stoves and recreational vehicles. Installed with a 50 amp circuit breaker, this outlet enables a recharge rate of about 37 kilometers per hour.
What size wire is for 50 amps?
6
50 AMP Wire Size For a maximum of 50 amps, you’ll need a wire gauge of 6. Fifty amp breakers are most often used to power many different appliances. However, a kitchen oven can alone require 50 amps. Many electric dryers also require a 50 amp breaker.
What is the difference between a NEMA 14-50R and a 14-50P?
see less This receptacle is designated NEMA 14-50R. It will only mate with NEMA 14-50P plug. If you are planning to plug other than the latter, it is not going to work. You need to make an adapter (NEMA 14-50P plug + cord + same type receptacle as your plug) so that you can use this receptacle.
What is the difference between 14-50R and 14 50P?
This receptacle is designated NEMA 14-50R. It will only mate with NEMA 14-50P plug. If you are planning to plug other than the latter, it is not going to work. You need to make an adapter (NEMA 14-50P plug + cord + same type receptacle as your plug) so that you can use this receptacle.
