What years did Kawasaki make the Prairie 650?

What years did Kawasaki make the Prairie 650?

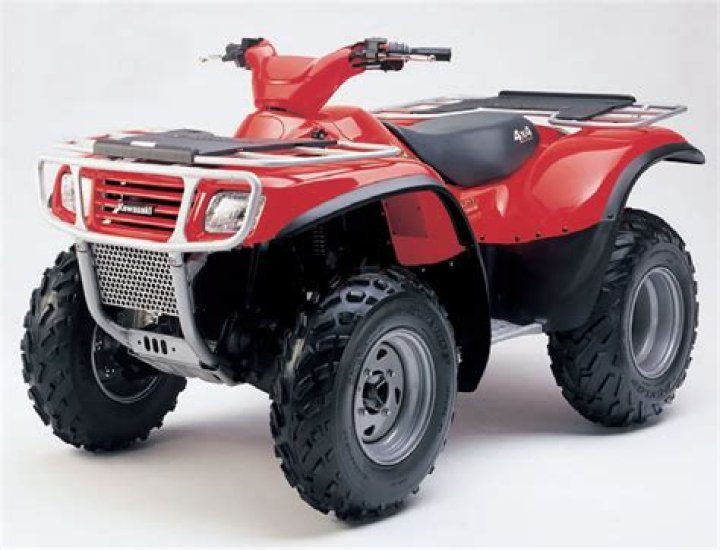

The 2003 Kawasaki Prairie 650 4×4 ATV is considered among enthusiasts to be one of the best engineered off-road vehicles available since the Prairie series was introduced in 1983. The Prairie 650 was the first V-Twin powered ATV and marketed specifically for hunters and farmers, according to ATVSource.com.

How do you turn off the belt light on a Kawasaki Prairie?

Turn your Prairie’s ignition switch to the On position. The belt light will begin to flash. Turn the ignition switch to the Off position after 10 seconds. Unplug the gray and black connectors and reconnect them to their corresponding connectors. Reconnect the belt failure sensor’s 2-pin connector to your Prairie’s wiring harness.

How do I Reset my drive belt on a Kawasaki ATV?

The information contained in the guide explains how to reset your Drive Belt Check system and/or the Drive Belt Failure Detection System. Models equipped with a Drive Belt Check system may alert you to check your belt by illuminating a light on the instrument cluster.

Do you need to reset the belt light on an ATV?

The belt warning system on your ATV must be PROPERLY reset and should not be disabled or tampered with. This manual will show you how to properly reset it. Don’t get stranded out in the middle of nowhere without the information you need to reset your belt light and get back on the trail.

Where is the ignition switch on a Kawasaki Prairie?

Unplug the gray and black wiring connectors, located above the CVT belt cover. Plug the male gray connector into the female black connector and the male black connector into the female gray connector. Turn your Prairie’s ignition switch to the On position.

Where is the belt light reset button on a Kawasaki P650?

Belt light reset procedure for late 2003 and later P650, P360, and BF650SRA. 1. Turn the ignition switch OFF. 2. Disconnect both sets of 5 pin connectors located above the CVT cover. Note: These connectors are located just beneath the shift handle on the right side of the 650; one is black and one is grey.

Turn your Prairie’s ignition switch to the On position. The belt light will begin to flash. Turn the ignition switch to the Off position after 10 seconds. Unplug the gray and black connectors and reconnect them to their corresponding connectors. Reconnect the belt failure sensor’s 2-pin connector to your Prairie’s wiring harness.

Where is the belt failure switch on a Kawasaki ATV?

1. Turn the ignition switch OFF. 2. Disconnect the belt failure switch at the 2-pin connector above the CVT cover. (Note: Just follow the wires coming from the rectangular black box on the CVT Cover to locate this connector.) 3. Disconnect both sets of 5 pin connectors located above the CVT cover.

Is there a belt Trip Switch on a Kawasaki 360?

This has been the case with many 360 owners, they found them after looking further. There is a procedure in the Vforce folder for the Vforce to reset the light. The Vforce does not have a belt trip switch. Note: Disconnecting the battery does not reset the light.
