Where are AutoCAD plot files stored?

The folder location is typically: C:\Users\\AppData\Roaming\Autodesk\AutoCAD \\enu\Plotters\Plot Styles .

Where is plot style editor AutoCAD?

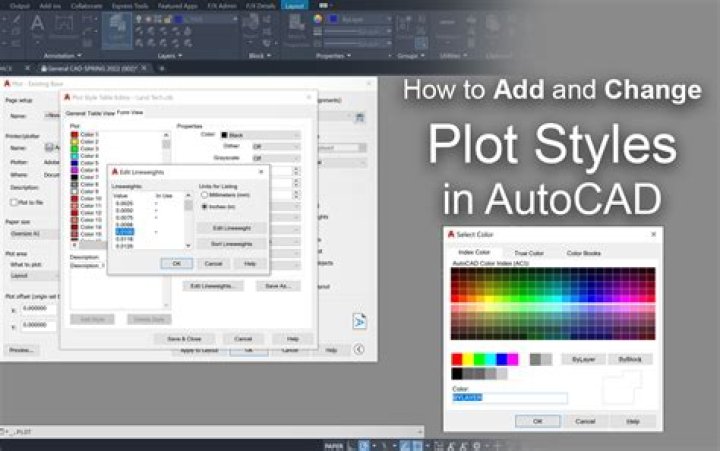

Double-click the plot style table file you want to modify. In the Plot Style Table Editor, Form View tab, under Plot Styles, select the plot style you want to modify.

How to hyperlink a picture in AutoCAD?

Add a Hyperlink to an Object

  1. Create a drawing and then create a circle.
  2. On the Insert tab, Data panel, click Hyperlink. Find.
  3. Select the circle and press Enter. The Insert Hyperlink dialog box displays. Note: You can select several objects to which to add or edit hyperlinks.
  4. Click OK.

Where is plot style manager in AutoCAD 2019?

In the Page Setup dialog box under Plot Style Table (Pen Assignments), select a plot style and click the Edit button. In the Current Plot Style and Select Plot Style dialog boxes, choose Editor.

What is STB and CTB in AutoCAD?

A CTB is a colour-dependent plot style table that uses an object’s colour to determine characteristics such as lineweights. There are 256 plot styles in a colour-dependent plot style table, one for each colour. A STB is a Named Plot Style table.

How do I import plot styles in AutoCAD?

How to add plot style in AutoCAD?

  1. First of all, click on the “Application menu” and then click on the Print.
  2. Select “Manage plot styles” from the options in the right-side panel.
  3. After that, all plot styles will open.
  4. Double click on the STB file in which you want to add plot style.

Where is the application menu in AutoCAD?

To access the application menu, click at the upper-left corner of the workspace. The application menu remains open as long as the cursor is located inside the application menu window.

How do you refresh a JPEG in AutoCAD?

In the External References palette, in the File References pane, right-click the image name, and then click Unload or Reload. The status of the selected image changes. All instances of the selected attached images are unloaded or reloaded.

How do I insert an image into AutoCAD without references?

In AutoCAD, click Edit menu > Paste Special. Select the options Paste and Picture (Metafile) in the Paste Special box. Click OK. Place the image in the drawing.

How do I find plot styles in Autocad?

To Find Plot Style Files

  1. Click the Application menu Options.
  2. In the Options dialog box, Files tab, click the plus sign (+) to the left of Printer Support File Path.
  3. Click the plus sign (+) to the left of the Plot Style Table Search Path. The locations the program looks in for plot style files are displayed.

How do I import a CTB File into Autocad Mac?

To Assign a Plot Style Table to a Layout

  1. Click the Model tab or the layout tab to which you want to assign the plot style table.
  2. Click File > Plot Styles.
  3. Double-click Plot Style in the Plotter dialog box.
  4. Double- click the ctb/stb file.
  5. Click Save and Close.
  6. Close the Plot Style dialog box.
