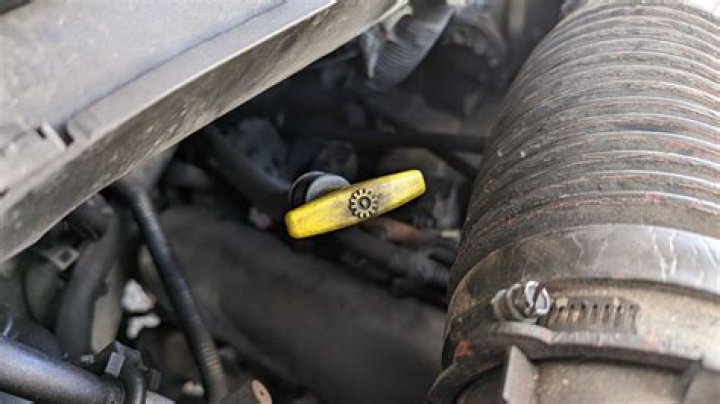

Where is the transmission oil dipstick located?
First, locate the transmission dipstick, which can be found under the hood, in the engine compartment. Make sure you are locating the transmission dipstick and not the engine-oil dipstick; the transmission dipstick is usually further back in the engine bay, toward the firewall (the bulkhead at the front of the cabin).
Where is the transmission dipstick on a Chevy?
Locate the transmission fluid dipstick. On front-wheel-drive vehicles, it’s likely located to the right of the oil dipstick. Review your owner’s manual if you can’t find it. Remove the dipstick, touch the fluid, and move it around between your thumb and index finger.
Why is there no transmission dipstick?
Automatic transmissions which use World Standard (WS) fluid are sealed and do not consume fluid. This eliminates the need for periodic fluid checking using a dipstick.
Where is the transmission number located?
The transmission number will be on the side of the transmission, or on the top of the transmission (manual and automatic respectively).
How should transmission fluid look on dipstick?
Check the fluid. Dip the tip of your index finger into the fluid on the dipstick and rub the fluid between your finger and the tip of your thumb. The transmission fluid on the dipstick should be pinkish and almost clear. If it looks or smells burnt or has particles in it, have a mechanic drain and change the fluid.
How do you check transmission fluid when there is no dipstick?
If the vehicle does not have a dipstick, the transmission fluid must be checked at the transmission. This requires lifting the car on four jack stands; it must be level to check the fluid. There will be a fill plug on the side of the transmission case. This is not the drain plug located at the bottom of the sump.
How do you know if your car needs transmission fluid?
6 Signs Your Car Needs Transmission Service
- Grinding or Squealing Noise. Do you hear a mechanical, metal on metal grinding or squealing noise as your car shifts?
- Burning Smell While Shifting.
- Popping Out of Gear.
- Erratic Shifting.
- Delayed Shifting.
- Transmission Fluid Leak.
Where is the dipstick for automatic transmission fluid?
Check owner’s manual.) Locate automatic transmission fluid dipstick, typically near where the transmission or transaxle meets rear of the engine. It looks similar to the oil dipstick. Remove automatic transmission fluid dipstick. Wipe clean, reinsert fully and remove again. CAUTION: FLUID MAY BE HOT! Observe markings at end of dipstick.
Where are The Dipsticks located in a car?
If you’re checking the dipstick properly and have to continuously add transmission fluid, there’s a leak in the system somewhere. Most transmissions are mounted to the back of the engine, so vehicles equipped with transmission dipsticks generally locate them on the lower side of the engine toward the back.
How can I check the fluid level in my transmission?
On most cars, the car must idling in park with the parking brake on and the transmission hot. Wipe the dipstick on a clean rag or paper towel, reinsert it and pull it out again to check the transmission fluid level. The fluid level should be between two marks labeled either “Full” and “Add” or “Hot” and “Cold.”
How do you check the fluid level on a dipstick?
To check the level accurately, re-insert the dipstick all the way and pull it out. There are two lines or marks on the dipstick labeled either; “Hot” and “Cold” or “Full” and “Add.” The fluid needs to at least be between these two lines. If it is below the bottom line, then more fluid needs to be added.
Where can I buy automatic transmission fluid for my Chevy S10?
If you prefer to shop in person for the right Automatic Transmission Fluid products for your S10, visit one of our local Advance Auto Parts locations and you’ll be back on the road in no time! Use the fitment form at the top of the page to select your exact year and engine type for your Chevrolet S10.
How do you check the transmission fluid level?
Wipe the dipstick off with a clean, lint-free cloth and reinsert the dipstick. Pull the dipstick out and verify the transmission oil level is between the two dimples on the dipstick, below the “Add” mark — this is the correct fluid level when the transmission fluid is cold. Add fluid, as needed, to reach the proper level.
What’s the correct fluid level for the S-10?
Drive the S-10 for 10 to 20 miles to warm it up, then recheck the fluid level. The correct level when warm is the cross-hatched section. Add fluid, as needed, to reach this level.
How often do you change the transmission on a 1994 Chevy S-10?
Chevrolet offered an optional four-speed automatic transmission for the 1994 S-10. Chevrolet recommends replacing the transmission fluid in the four-speed automatic every 15,000 miles. Raise the front of the S-10 with a floor jack.
