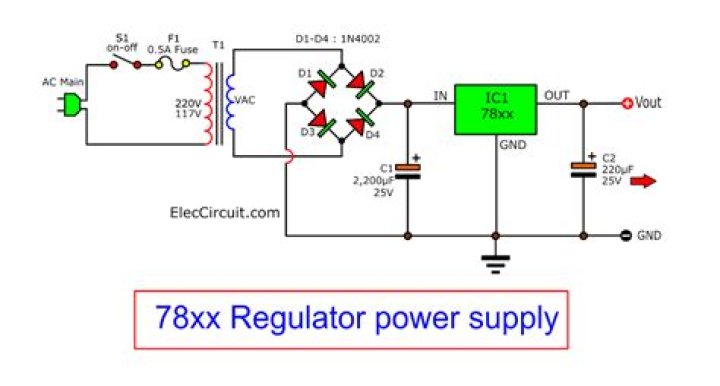

What is IC 78xx?
78xx (sometimes L78xx, LM78xx, MC78xx…) is a family of self-contained fixed linear voltage regulator integrated circuits. The 78xx family is commonly used in electronic circuits requiring a regulated power supply due to their ease-of-use and low cost.
What is IC 723?
Explanation: The IC 723 is a voltage regulator, which can act as both a low voltage regulator as well as a high voltage regulator. Output can be set between 7-37 volts. 7 volts is the reference starting voltage.
What is IC 78l05z?
7805 Voltage Regulator, a member of 78xx series of fixed linear voltage regulators used to maintain such fluctuations, is a popular voltage regulator integrated circuit (IC). The xx in 78xx indicates the output voltage it provides. 7805 IC provides +5 volts regulated power supply with provisions to add a heat sink.
What is regulator IC?
A voltage regulator is an integrated circuit (IC) that provides a constant fixed output voltage regardless of a change in the load or input voltage. It can do this many ways depending on the topology of the circuit within, but for the purpose of keeping this project basic, we will mainly focus on the linear regulator.
What is IC LM317?
The LM317 is an adjustable three-terminal positive-voltage regulator capable of supplying more than 1.5 A over an output-voltage range of 1.25 V to 37 V. It is exceptionally easy to use and requires only two external resistors to set the output voltage.
What is an IC voltage regulator?
What is the output of the IC 7924?
Specifications
| Specification | Value |
|---|---|
| Package | TO-220-3 |
| Voltage Output (V)(Min/Fixed) | -24 |
| Output Current | 1 A |
| Output Type | Fixed |
How IC 723 is used as the low voltage regulator?
IC 723 as a Low Voltage Regulator. The LM723 is the adjustable voltage regulator IC designed for series regulator application, with a current output of 150mA without external pass transistor. The above figure shows the Functional Diagram of IC 723. The conduction of the transistor Q1 is controlled by the error signal.
What is the reference voltage in IC LM317?
The LM217, LM317 provides an internal reference voltage of 1.25 V between the output and adjustments terminals. This is used to set a constant current flow across an external resistor divider (see Figure 6. If the load is insufficient, the output voltage will rise.
Which regulator IC is variable regulator IC?
LM317 voltage regulator IC The adjustable pin (terminal) is provided with a variable resistor which lets the output to vary between a wide range.
