What is the electron beam welding?

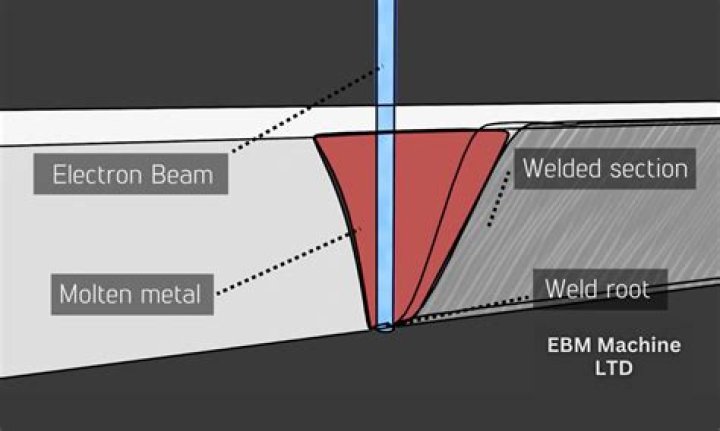

Electron beam (EB) welding is a fusion welding process whereby electrons are generated by an electron gun and accelerated to high speeds using electrical fields. This high speed stream of electrons is tightly focused using magnetic fields and applied to the materials to be joined.
What is the working principle of electron beam welding?
Electron beam welding in vacuum utilizes the kinetic energy of electrons traveling with high velocity in a high vacuum (10-3 to 10-5 mm Hg). When the electrons strike the surface of the metal, they give up the bulk of their energy as heat, and this goes to melt the metal.
What is electron beam welding PDF?
EBM or Electron beam welding is a welding process that uses the heat produced by a beam of high-energy electrons. Electrons hit the workpiece and their kinetic energy is transformed to thermal energy heating the metal so that the sides of the workpiece can be joined and a weld can be formed after freezing.
What are the advantages of electron beam welding?
Application Advantages of Electron Beam Welding Narrow/Deep: high depth-to-width ratio eliminates multiple-pass welds. Penetration from . 001” to 2”. Low Heat: minimizes shrinkage and distortion and allows welds in close proximity to heat sensitive components.
How hot is electron beam welding?
Operation. As the electrons strike the workpiece, their energy is converted into heat, instantly vaporizing the metal under temperatures near 25,000 °C. The heat penetrates deeply, making it possible to weld much thicker workpieces than is possible with most other welding processes.
How do you make a beam of electrons?
Thermionic emission of electron Thermionic sources rely on heat to generate electrons, similar to how light is produced by incandescent lightbulbs. As a current is applied to the filament (or crystal), it is progressively heated until its electrons have enough energy to escape the solid surface.
What is the temperature of electron beam welding?
Which type of lens is used in electron beam welding?
magnetic lenses
Using magnetic lenses, by which the beam can be shaped into a narrow cone and focused to a very small diameter. This allows for a very high surface power density on the surface to be welded. Values of power density in the crossover (focus) of the beam can be as high as 104 – 106 W/mm2.
What is the example of fusion welding?
Examples of fusion welding processes Such processes where heat is applied by means of electric arc are termed as arc welding process. Similarly, all gas welding processes, resistant welding processes, and intense energy welding processes are basically examples of fusion welding.
What are the limitations of electron beam welding?
Disadvantages of EBW: 1) Very high equipment cost. 2) High vacuum is required. 3) High safety measures are required. 4) Large jobs are difficult to weld.
What are the disadvantages of electron beam welding?
Disadvantages of Electron Beam Welding:
- Setup costs: The initial outlay for equipment is expensive.
- Equipment: Due to the complex technical equipment, expert operators are essential.
- Size limitations:
- X-Rays & Radiation:
